| Product Overview

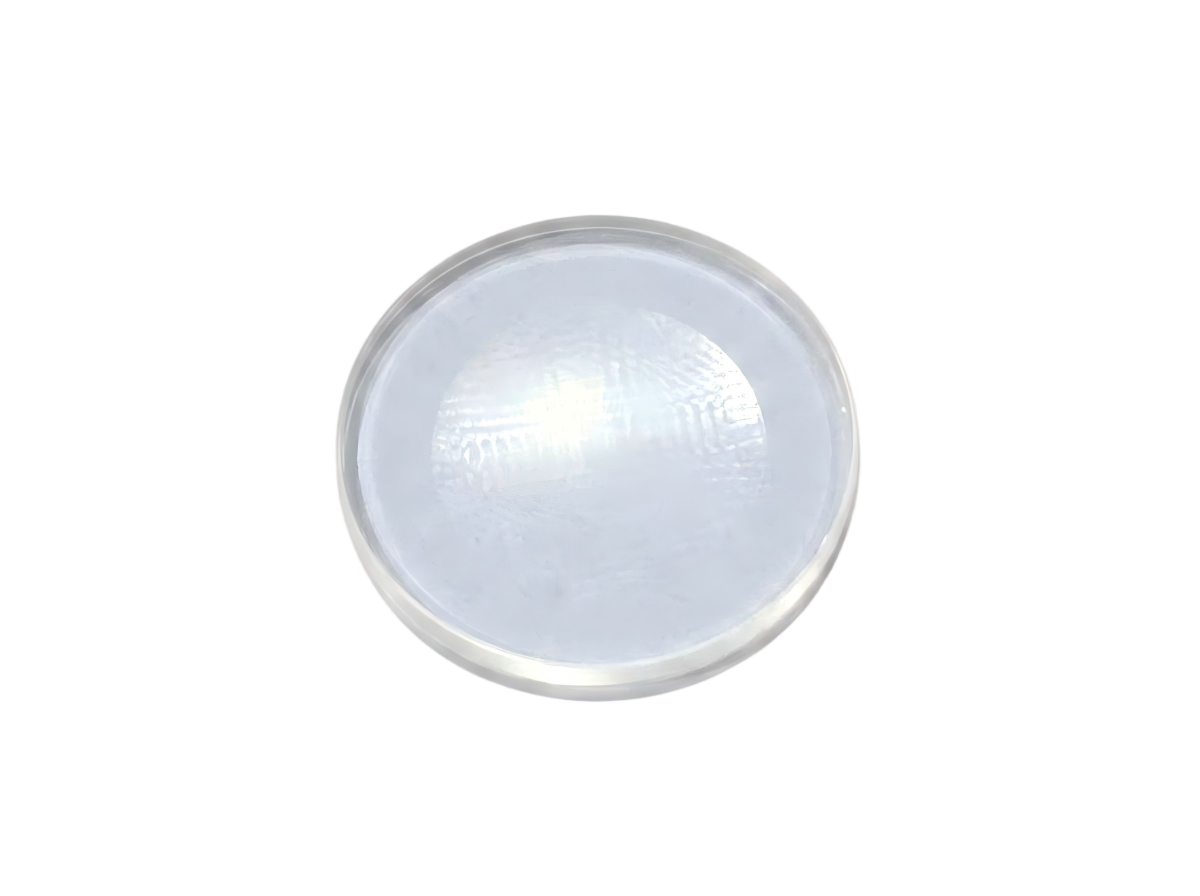

The ring light shaper is a Optics element that can convert the incident light beam into a ring light spot.It is modulated by a specific Phase, so that the beam Phase delay or energy redistribution, the formation of a dark center, edge bright ring-shaped light field.It can control the inner diameter, outer diameter and light intensity distribution of the ring, which is more flexible than traditional devices.With the characteristics of compact structure and high efficiency, it is widely used in Laser processing and other fields.

| Main application scenarios

·Laser material processing (Laser cutting, Laser welding, Laser cleaning, Laser drilling, etc.)

·Biomedicine (Corneal Surgery)

·Optics Coherence Tomography (OCTO)

·Astronomy

| Product Features

·The user can customize the working Wavelength of the shaping device, and the Laser light source can be selected (355/532/633/800 only high threshold optional/1064/1080/1550nm).

·Plastic working face Focal Length can be customized according to user needs, optional (300/200/100mm).

·Among them, the high-threshold point ring optical shaper adopts the GPOE route, which is applicable to a wide range of bands and high damage threshold.

·Non-liquid crystal material substrate, the use of quartz substrate can avoid the traditional organic liquid crystal in the deep ultraviolet irradiation Absorption strong and unstable, can be used in the DUV band.

Point ring optical shaper DOE
