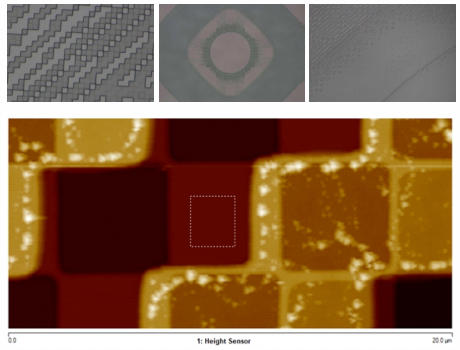

Flat-top (Top-Hat) homogenization and shaping device is a flat Optics element designed based on the principle of Diffraction Optics.By etching the micro-nano structure on the substrate, the Gaussian Beam (TEM00,M2 < 1.3) is shaped and homogenized on a specific working plane.

| Focused Flat Top Optical Saper DOE & Focused High Threshold Flat Top Optical Saper GPOE

Focused flat-top light shaper is a composite Phase Optics element that integrates flat-top shaping and focusing functions. By designing a specific Phase distribution, it simultaneously modulates the incident beam: one is to convert the non-uniform light field into a flat-top distribution to ensure uniform light intensity in the spot; the other is to give the beam focusing Phase so that the flat-top light is accurately focused at the specified axial position. This composite function can avoid the complexity of multi-component combination, has the characteristics of high integration and low energy loss, and is suitable for Laser processing, lithography and other scenes that need to focus the spot evenly, and improve the efficiency and accuracy of the Optics system.

Main application scenarios

·Biomedical and Medical Beauty

·Laser processing (Laser cutting, Laser marking, Laser punching, etc.)

·Lithography

·Microscope

Product Features

·According to user needs to provide Green(515/532nm) (532nm), ultraviolet light field (355nm) and Near Infrared (NIR) light field (1064nm) flat top light homogenization device

·The product has a composite Phase with focusing function, which can accurately focus the flat top light at the specified axial position.

·Among them, the focused high-threshold flat-top optical shaper adopts the GPOE route, which is suitable for a wide range of bands and high damage threshold.

·The use of quartz substrate can avoid the strong Absorption and instability of traditional organic liquid products under ultraviolet light irradiation, and can be applied to the flat-top light conversion of ultraviolet light field.

·Unevenness of homogenized product RMS < 10%, Diffraction Efficiency> 90%

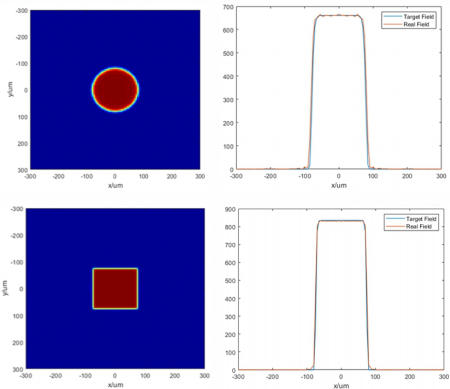

·The output spot has a square, rectangular, circular, a word line shape optional

·In addition to standard products, it also supports flexible customization of parameters and specifications. For specific customization requirements, please contact the design team for support.

| Flat Top Optical Saper DOE & High Threshold Flat Top Optical Saper GPOE

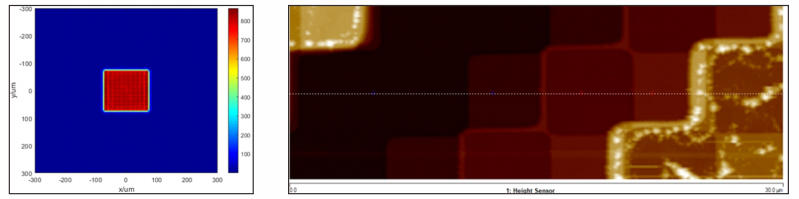

Flat-top light shaper is a kind of Optics element that can convert the non-uniform light field such as Gaussian distribution of incident beam into flat-top distribution. It applies differential Phase compensation to different areas of the beam through specific micro-nano structure or Phase modulation, so that the output spot has uniform light intensity distribution and steep edges within a certain range. Compared with traditional devices, it can precisely control the size and uniformity of the flat-top area, has the characteristics of high conversion efficiency and low loss, and is widely used in Laser material processing, lithography, medical Laser and other fields, improving the efficiency of light energy utilization and the consistency of the effect.

Main application scenarios

·Biomedical and Medical Beauty

·Laser processing (Laser cutting, Laser marking, Laser punching, etc.)

·Lithography

·Microscope

Product Features

·According to user needs to provide Green(515/532nm) (532nm), ultraviolet light field (355nm) and Near Infrared (NIR) light field (1064nm) flat top light homogenization device

·Among them, the high-threshold flat-top optical shaper adopts the GPOE route, which is suitable for a wide range of bands and high damage threshold.

·The use of quartz substrate can avoid the traditional organic liquid crystal under ultraviolet light irradiation Absorption strong and unstable, can be applied to the flat top light conversion of the ultraviolet light field.

·Unevenness of homogenized productRMS < 10%, Diffraction Efficiency> 90%

·The output spot has a square, rectangular, circular, a word line shape optional

·In addition to standard products, it also supports flexible customization of parameters and specifications. For specific customization requirements, please contact the design team for support.
