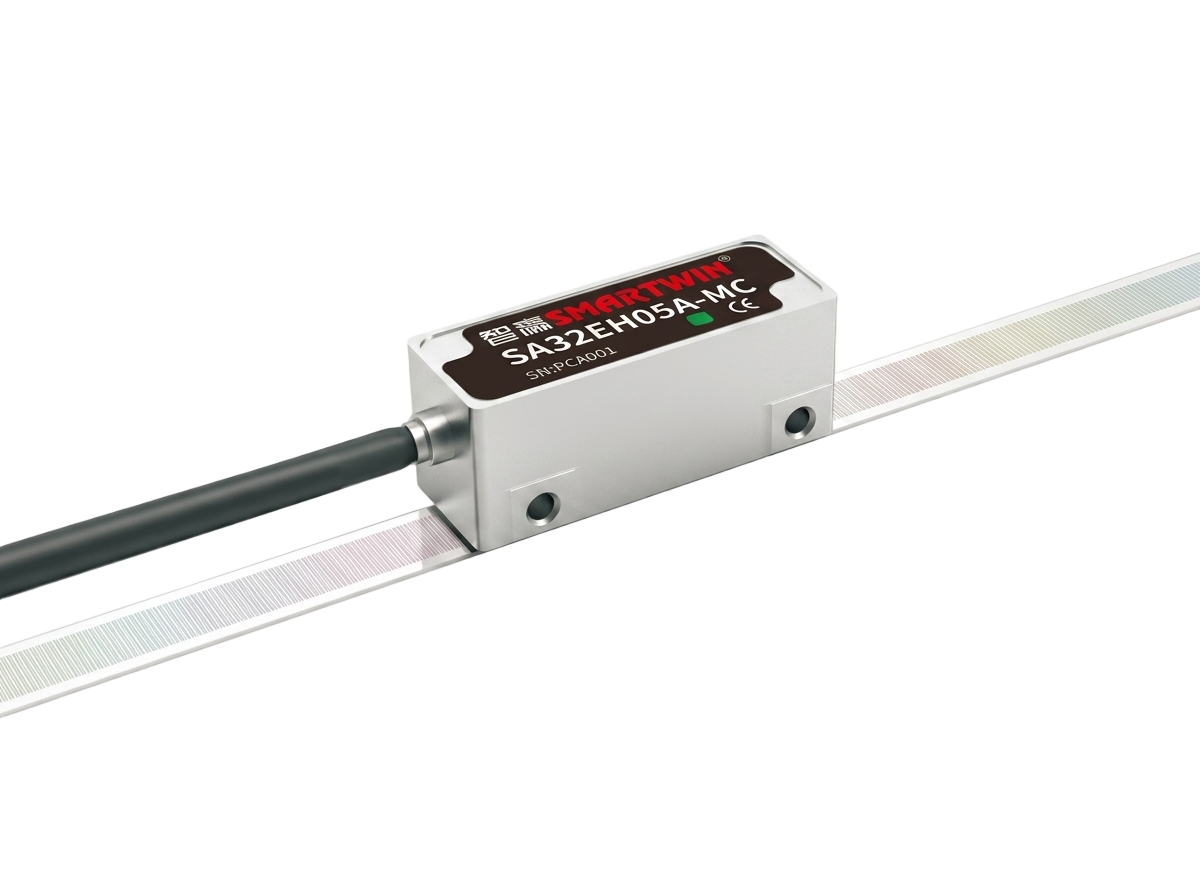

·Small and compact

·Small size, easy to apply to small environment

·High response speed

·Fast and accurate feedback and transmission of signals in high-speed motion

·High precision

·Micron-level positioning accuracy and Repeatability (RMS), providing precise positioning function

·LED status indicator

·Different lights represent different states, more intuitive display encoder status, easy to adjust when assembling.

·No mechanical friction

·The reading head has no contact with the grating ruler and will not produce wear.

·Disassembled

·Reading head easy to assemble and disassemble, no complex assembly requirements

·Output type/communication mode: ABZ differential output/BISS high-speed protocol communication

·Supply voltage, consumption current: 5V(-5%/+ 10%),200 mA (no load)

· Fastest response speed:0.1μm:1m/s;0.5μm:3m/s;1μm:5m/s;

·Allowable Environment Temperature: 0 ℃ to 65 ℃

· Grating Type:Straight type

· Position accuracy:±5μm/m(25°C)

·Repeatability (RMS): ± 0.7 μm/m(25 ℃)

·Detection of effective length: 50000mm

· Coefficient of thermal expansion:10.1±0.2μm/m/℃

·communication type:BISS High Speed Protocol Communications

·Supply voltage, consumption current:5V ± 10%,200mA (no load)

· Fastest response speed:0.5μm:3m/s;1μm:5m/s

·Allowable Environment Temperature: 0 ℃ to 65 ℃

· Grating Type: Straight

·Position accuracy:±5μm/m

· Linear accuracy: ± 2.5 μm/m(25 ℃)

· Check Out Effective Length:10000mm

· Coefficient of thermal expansion:10.1±0.2μm/m/℃

· Output Type/Communication Method:ABZ Differential Output/BISS High Speed Protocol Communication

· Supply voltage, consumption current: 5V(-5%/+ 10%),200mA (no load)

· The fastest response speed: 0.5 μm:3 m/s;1 μm:5 m/s;0.1 μm:1 m/s;

·Allowable Environment Temperature: 0 ℃ to 65 ℃

· Accuracy class:--

· System accuracy: Depends on the diameter of the circle Grating

·Grating Type: Torus

· Coefficient of thermal expansion:15.5±0.5μm/m/℃

· Output Type/Communication Method:BISS High Speed Protocol Communications

· Power supply voltage, consumption current: 5V 10%,200mA (no load)

· Fastest response speed:0.5μm:3m/s;1μm:5m/s;

·Allowable Environment Temperature: 0 ℃ to 65 ℃

·Accuracy class:--

·System accuracy: Depends on the diameter of the circle Grating

·Grating Type: Torus

·Coefficient of thermal expansion:15.5±0.5μm/m/℃
