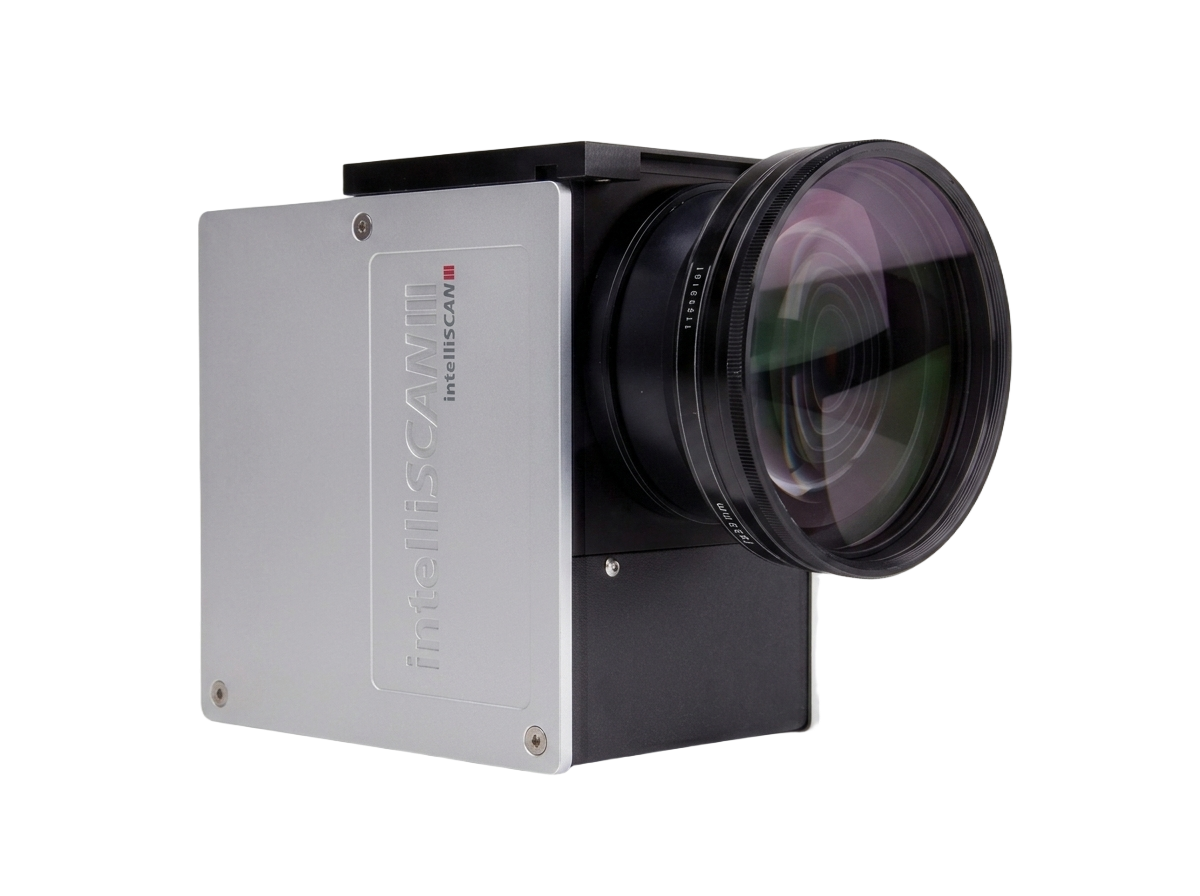

intelliSCAN III Series Scanning Head -14mm
- Ideal adaptability conferred by multiple variants
- Comprehensive diagnostic and monitoring capabilities
- Maximum flexibility with switchable tuning
Specifications
Parameter specifications
Technical Drawings
| Smart Scan
scanlab intelliSCAN scanning heads are distinguished by their wide variety of models and excellent dynamic performance.The intelliSCAN series is highly flexible and versatile and is designed for tasks that require extremely high scanning performance in a variety of applications.This series is a two-dimensional scanning system, which can realize the deflection and precise positioning of the laser beam in the working plane.
Main features •Highest dynamic performance •Maximum flexibility with switchable tuning •Ideal adaptability conferred by multiple variants •Comprehensive diagnostic and monitoring capabilities •With long-term high stability •Water Cooling and Air Cooled Options | Typical applications •Additive Manufacturing (3D Printing) •Materials Processing, Microstructure •Marking, welding, drilling •Immediate processing |
|intelliSCAN Product Line Series
•intelliSCAN (The apertures are 10, 14, 20 and 30mm respectively) •intelliSCAN III (The apertures are 10, 14, 20 and 30mm respectively) •intelliSCAN se (The apertures are 10, 14, 20 and 30mm respectively) | Advantages of intelliSCAN series •Variant diversity (Customized tuning for different devices, multiple enclosure types and Cooling) •high ductility (e. g. z-axis, Camera Adapter) •Tailored to specific applications and customers •Reduced heat generation due to digital control | Advantages of iDRIVE technology •Digital servo electronics improves dynamic response performance and marking quality •Up to three tuning modes can be switched to reduce process time. •Comprehensive diagnosis and communication between the scanning system and the RTC •Real-time access to all key state variables |
| Options and Variants
Type of housing •Standard Water Cooling system (optional 10mm and 14mm bore) •Standard air cooling (bore 20mm and 30mm) •Available as a scanning module without housing (not available for all apertures) Extension •varioSCAN II: extended to a three-axis scanning system •excelli SHIFT: extended to a high-speed, three-axis scanning system •Camera Adapter for Optics process monitoring | Optics •More than 50 standard coatings for different Wavelength, from UV to IR •Wide variety of goals •High-performance version with lightweight rearview mirror •Customized versions for specific customers may exist | Control Panel •RTC5 and RTC6(PCIe, Ethernet)
Software •Provide application-specific and customer-tailored optimization solutions (servo algorithms and parameter settings) •laserDESK: Professional software for Laser marking and material processing •Calibration solution: CalibrationLibrary |
