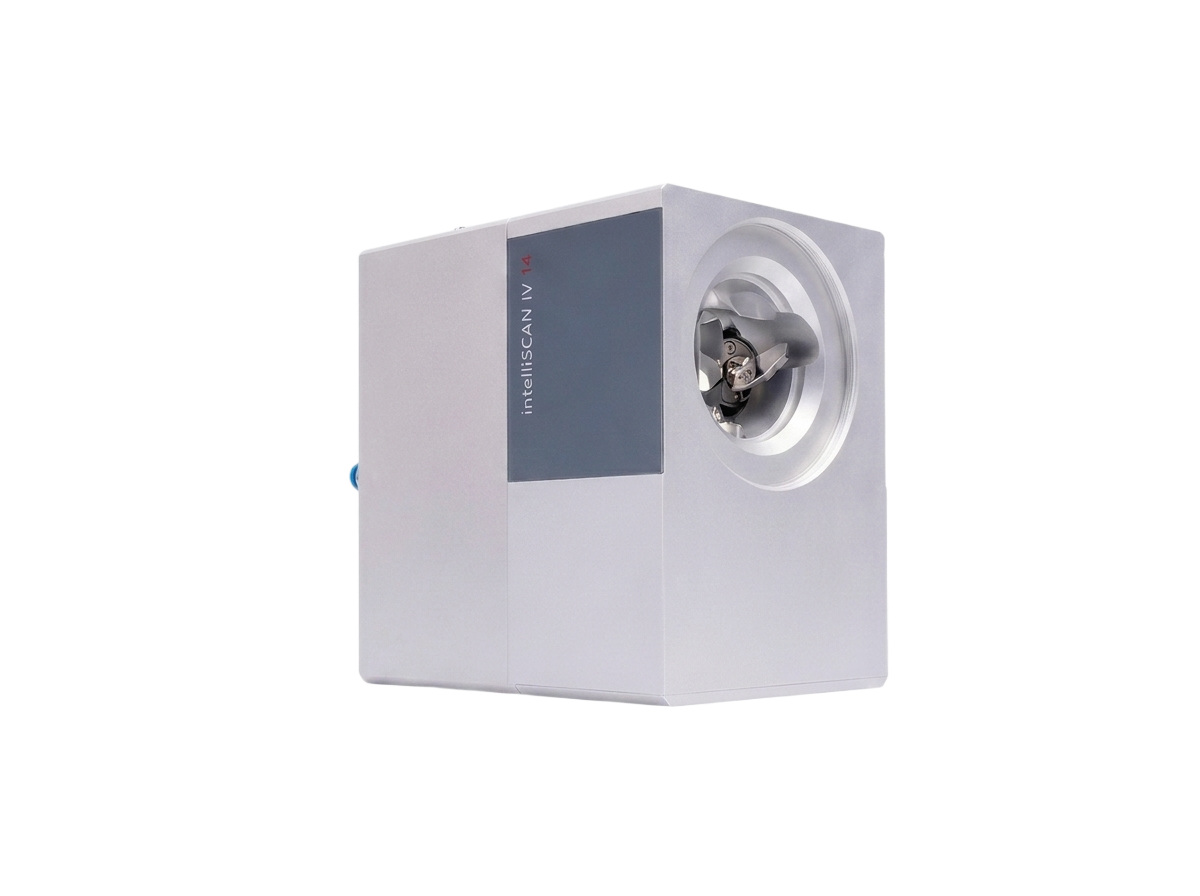

intelliSCAN IV Series Scan Head -14mm
- Fast marking of circles without necking effect
- Highest precision and precise Laser control through trajectory planning
- Simple Work Planning and Simulation: "What You See Is What You Get"
Specifications

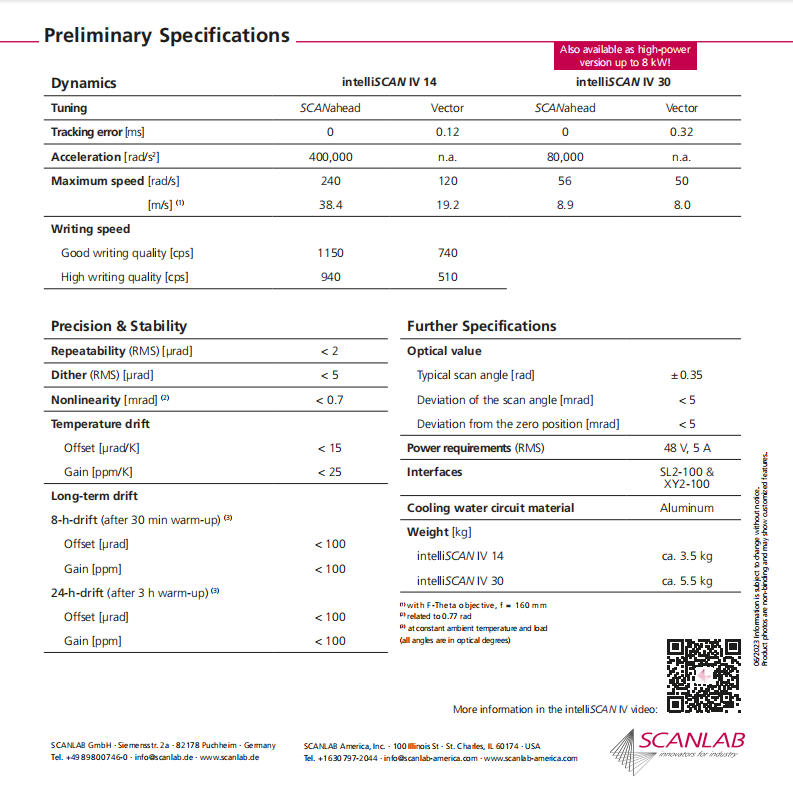

Parameter specifications

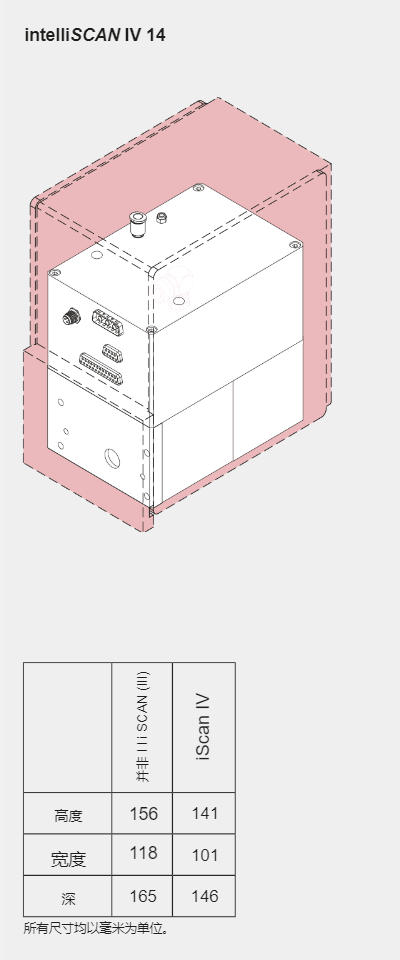

Technical Drawings
| Intelligent high dynamic scanning
The intelliSCAN IV is the latest in a series of successfully developed intelliSCAN products.In addition to the traditional intelliSCAN functions, we have also equipped it with the following new functions:
Dynamic Excellence •48V power supply •Classic Tracking Error tuning or SCAN-ahead control available •SCANmotionControl support •New cooling concept designed for high dynamic performance | Easy integration and installation •Compact, dustproof and waterproof housing (IP 66) •20-bit (SL2-100) and 16-bit (XY2-100) control functions, support automatic identification •Interlock connection for integration into the safety circuit |
SCANahead Control •Leverage galvanometer dynamics to increase throughput •No Tracking Error •Fast marking of circles without necking effect •Automatic delay function of RTC6: Laser Source and scanner delay can be set automatically For more information, see the SCANahead video: | Ready to Scan Motion Control •Highest precision and precise Laser control through trajectory planning •Minimal processing time through optimal use of scanner dynamics and Laser Power •Advanced Distance Control (SDC) function •Simple Work Planning and Simulation: "What You See Is What You Get" •Multi-head and multi-instance support (up to four scanners can be connected) For more information, see the SCANmotionControl video: |
intelliSCAN IV Series Scan Head -14mm
