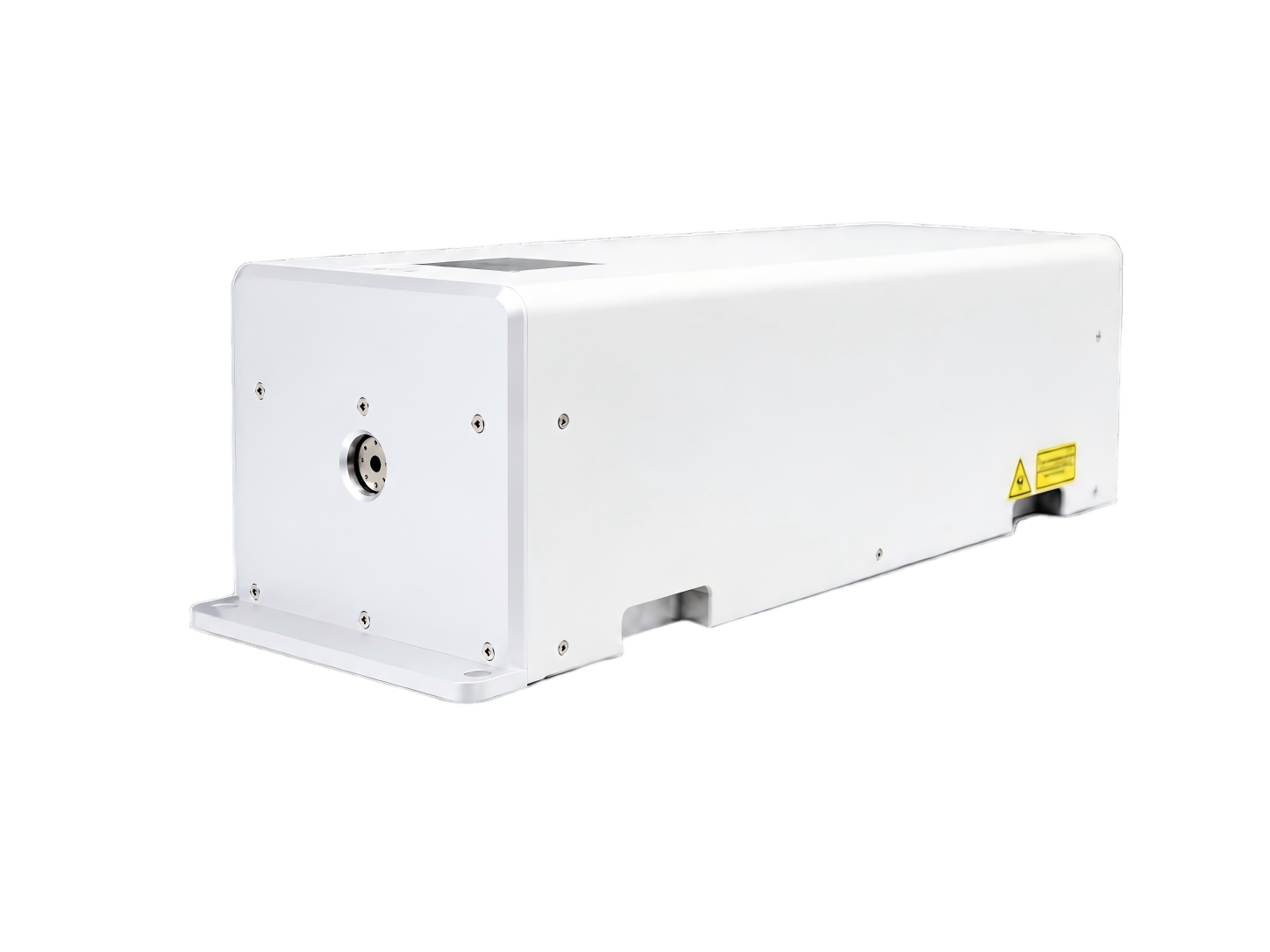

Product Overview

Based on the upgrading of the original technology platform, the nanosecond Laser Source has excellent Optics performance. In addition to maintaining the original leading spot quality (M2 < 1.2), it also extends the operating frequency range of the Laser Source from the original 30-150kHz to 40-300kHz. At the same time, the power of the Laser Source under high Repetition Rate is optimized, so that the Laser Source can adapt to more application requirements and improve the processing efficiency of customers. Our company nanoseconds the Laser Source adopts the world's leading intracavity frequency doubling technology, and its frequency doubling conversion efficiency leads the industry, making it the solid Green(515/532nm) Laser Source with the highest frequency doubling conversion efficiency at the same level. The Laser Source power covers 35W, 40W and up to 50W power output, which can meet most of the power requirements of customers for nanosecond Green(515/532nm) Laser Source. The Laser Source may be controlled using a TTL level signal and a PWM pulse width modulation signal. Customers can control the power output of the Laser Source through the PWF parameters on the internal control software or the duty cycle of the PWM signal. nanosecond Laser Source compact photoelectric integrated design, excellent M² Beam Quality, wide operating frequency, flexible control mode, comprehensive power coverage, is the best choice for FPC/PCB Cutting, solar cell processing, wafer processing and other applications.

Product advantages

· wide operating frequency range 40-300 kHz

· up to 50W Green(515/532nm) output

· can meet the requirements of 7 x 24 industrial production

· superior spot quality M2 < 1.2

· support TTL/PWM signal control

· efficient intracavity frequency doubling technique
