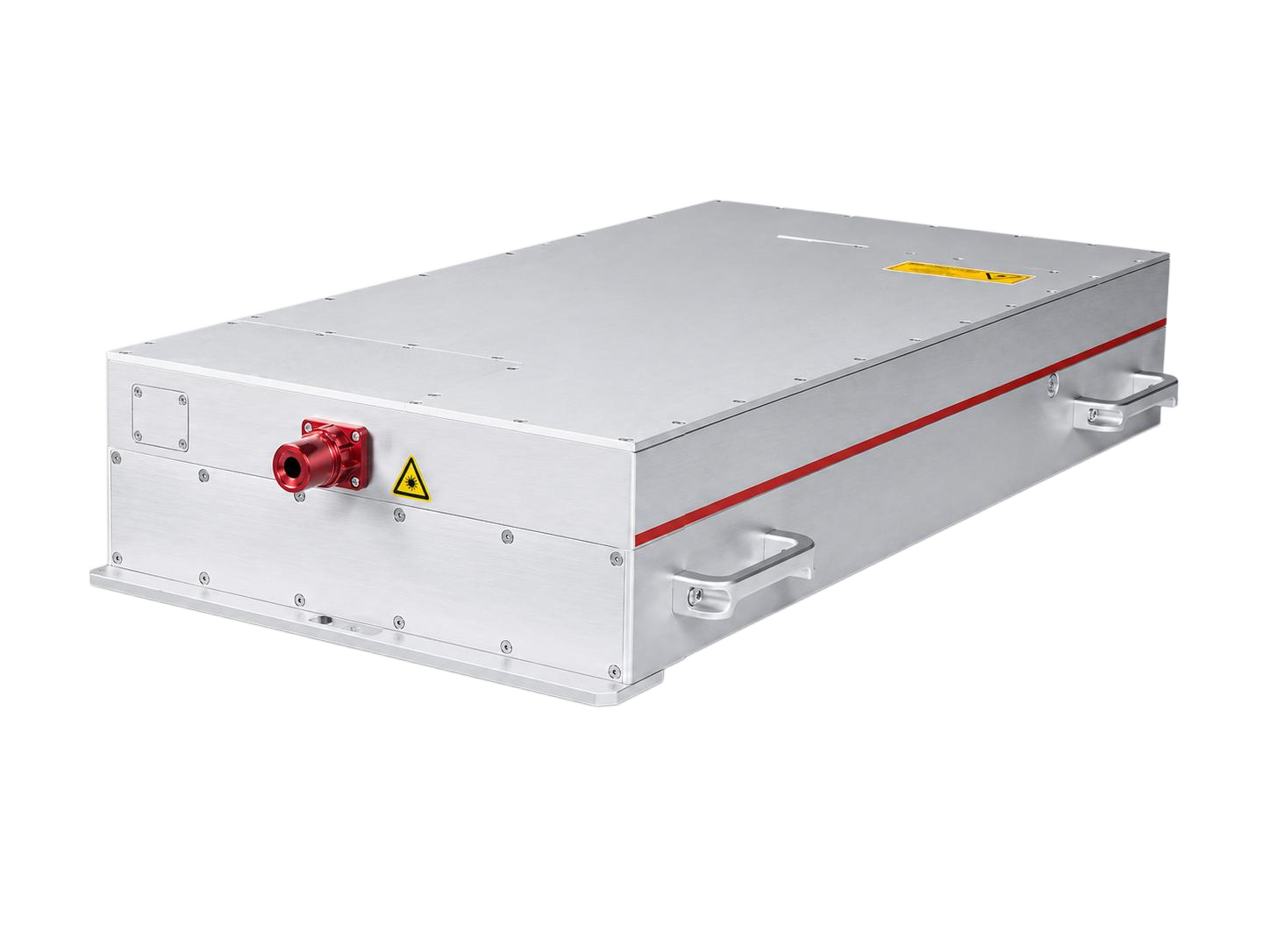

Infrared(IR,1030/1064nm) Picosecond Laser(10~100ps)
- Seed working life> 20000 hours
- Laser pulse width 10ps ~ 100ps customized according to requirements
- Pulse Train Output (Burst Mode), burst waveform arbitrary edit
Features of products
·Leonis Series High Power Picosecond Laser(10~100ps) with Fiber + Solid Hybrid Amplification Technology
·Product range includes 500W Infrared(IR,1030/1064nm), 200W Green(515/532nm), 100W UV(355nm) Picosecond Laser(10~100ps)
·The product adopts the integrated design of light, machine and electric control, and the whole machine is simple and compact.
·The product realizes adjustable Repetition Rate from 1Hz to 6MHz, with large single Pulse Energy ( > 1mJ) and pulse train high energy ( > 4mJ) output, which is convenient for users to change the Laser working frequency, output power or Pulse Energy
·The product is controlled by the upper computer software, and the customer's operation is intuitive and convenient. It adopts industrial design and has passed the 7 x 24-hour industrial field test.
Product advantages and application scenarios
Product advantages ·Seed working life> 20000 hours ·Infrared(IR,1030/1064nm)> 500W, Green(515/532nm)> 200W, UV(355nm)> 100W ·Single Pulse Energy> 1mJ; Burst Energy> 4 mJ @ Burst5 ·Laser pulse width 10ps ~ 100ps customized according to requirements |
·M² Beam Quality M2 ≤ 1.3, near and far field roundness> 90% ·Pulse Train Output (Burst Mode), burst waveform arbitrary edit ·PS0, POD, GATE frequency external control and External Power Control ·opto-mechatronics design |
Product Application ·TFT Display Cutting ·Sapphire Cutting ·Glass Marking ·Ink Removal ·PCB Punch ·Ceramic Cutting, drilling and scribing |
·Mobile phone glass cover Cutting ·OLED Display Cutting ·film ablation · PI Film Cutting ·Surface Texturing and texture ·Batteries and thin metal Cutting |
Infrared(IR,1030/1064nm) Picosecond Laser(10~100ps)
