| Product Brief

a

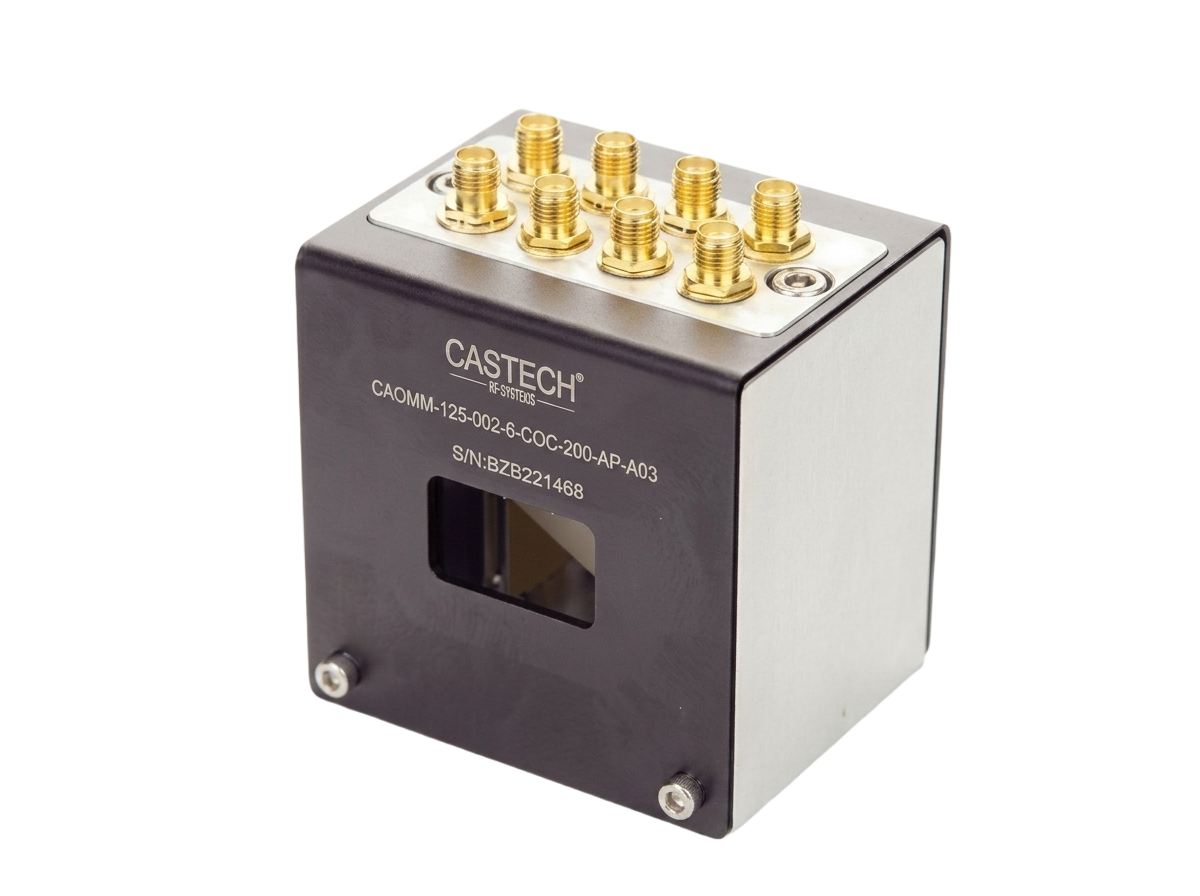

-Acousto-optic Multi-Channel Modulator(AOMM) (Acousto-optic multi-channel modulators,AOMM) is typically used to integrate a transducer array with a single Acousto-optic Crystal that can separately modulate or deflect multiple light beams. With the single channel AOM, can increase the modulation beam number, reduce the scanning rate, and can reduce the modulation bandwidth, greatly improve the device's linear characteristics. Thus in the Laser color printer, multi-channel acousto-optic Spectrometer, optical digital computer, two-dimensional information processing and video Infrared(IR,1030/1064nm) dynamic image conversion system has a great application. Our team specializes in AOMM's Optics and electrical development designs to minimize acoustic and electrical crosstalk. Our AOMM products allow simultaneous modulation of up to 10 channels and use high quality, low scattering fused silica, quartz or tellurium oxide crystals to ensure low Insertion Loss or high LIDT(Laser Induced Damage Threshold).

| Application Field

· Laser Marking

· Micromachining

· Printing

· Material Processing

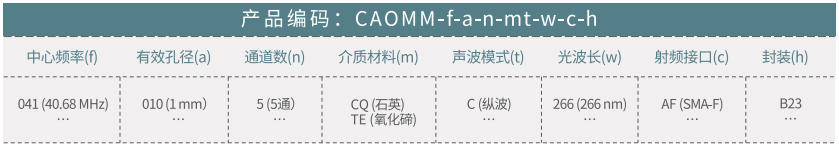

, our products are fully manufactured and can be customized according to customer needs. Standard products refer to the following list:

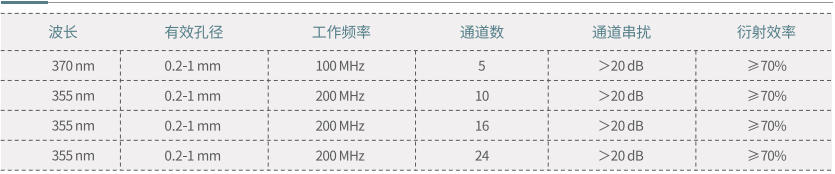

| Typical Reference Indicators

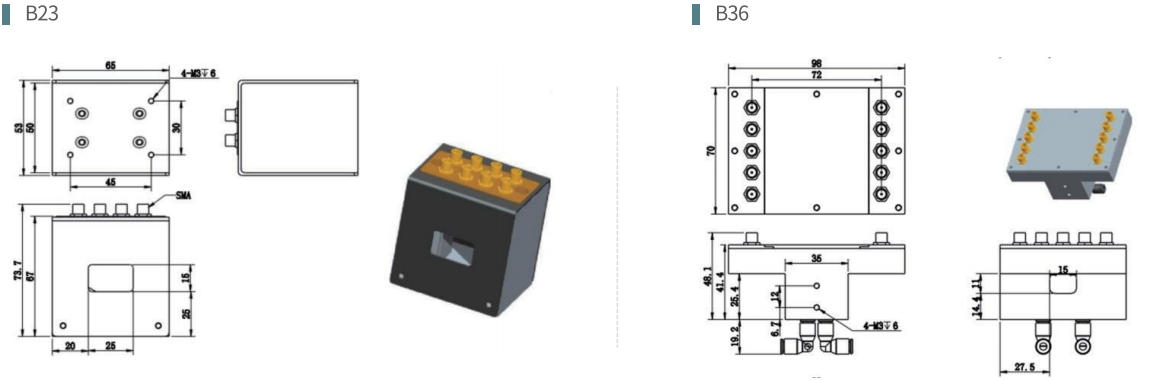

| Typical Package Dimensions Schematic (mm)
