crystal Polarizer Prism
| Product Introduction

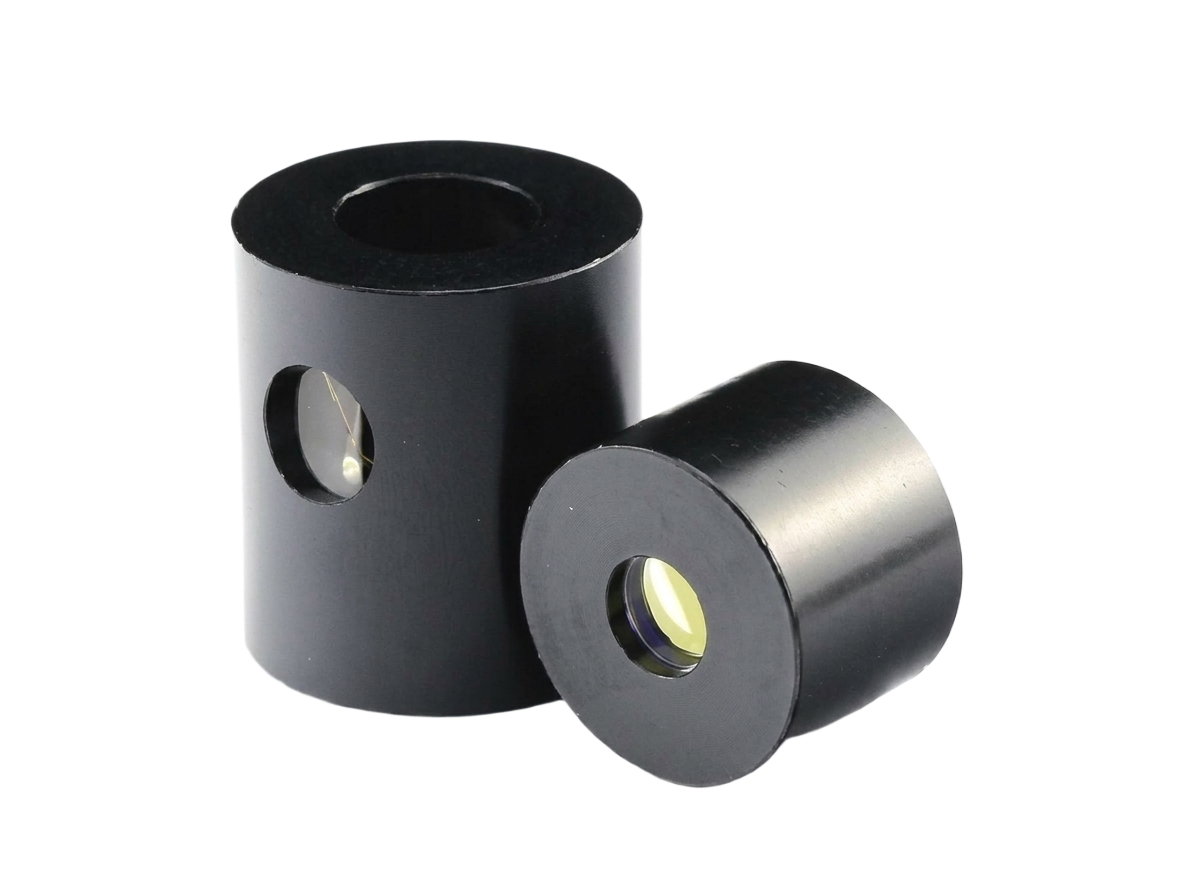

We offer Polarizer Prism made of birefringent crystals. Our crystal Polarizer Prism range includes Glan Taylor prisms, Glan Laser prisms, Glan Thomson prisms, Wollaston prisms, Rochon prisms and quartz crystal rotators. Polarizer Prism crystal materials include alpha-BBO crystals, calcite crystals, yttrium vanadate crystals, MgF₂ crystals, and quartz crystals. The product type and bracket can be selected and customized according to customer needs.
|
· material: calcite,α-BBO, YVO and its, MgF₂ or quartz crystal · customizable shapes and sizes · diameter range: 5 - 25.4mm · clear Aperture: 90% of the center diameter · transmitted Wavefront Distortion: & lambda;/4 @ 632.8nm |
· finish: 20/10 S/D · beam deviation:< 3 & prime; · extinction Ratio: 100,000:1 · provide standard membrane system or customized membrane system according to customer needs · high LIDT(Laser Induced Damage Threshold) |
| Optical Testing capacity

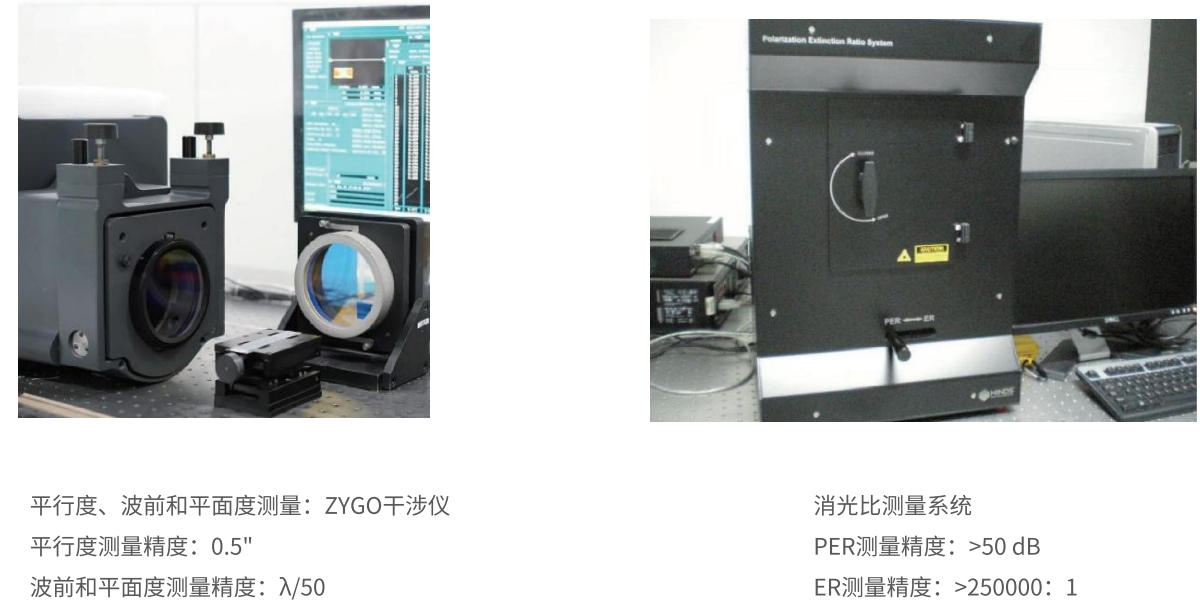

Extinction Ratio is a key indicator of Polarizer Prism. We use the polarization Extinction Ratio (PER) measurement system, which can simultaneously measure the polarization Extinction Ratio ( PER) and Extinction Ratio (ER).
crystal Polarizer Prism
