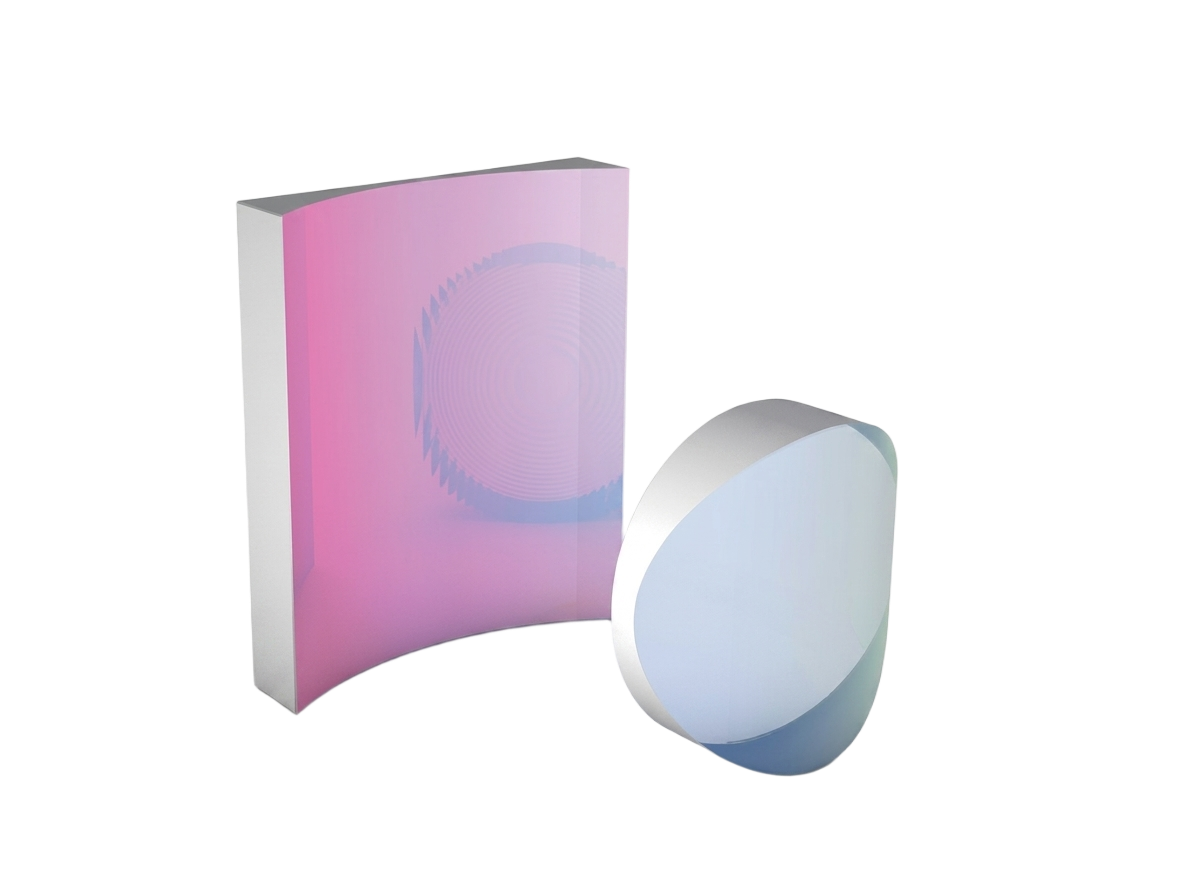

Cylindrical mirror
| Product Introduction
The cylindrical mirror has a converging or diverging effect on light in a one-dimensional direction. Our cylindrical mirror products include flat convex cylindrical mirror, flat concave cylindrical mirror and Chromatic Aberration cylindrical mirror, they are made of Optical Glass, such as melting. fused quartz, BK7, CaF₂ (CaF CO₂), or Zinc Selenide (ZnSe) (ZnSe) and other Optics materials, through a series of precision cylindrical processing technology, such as classical Polishing, CNC numerical control Polishing and Ion Beam Polishing (IBP) Polishing (IBF), supplemented by Fujing Technology's strong coating design and plating capabilities, can meet customer needs for various types of high-precision cylindrical mirrors.
|
· materials range from DUV(266nm) to Infrared(IR,1030/1064nm) bands available · customizable shapes and sizes · diameter range: 2 - 500mm · clear Aperture: 90% of the center diameter · flatness: & lambda;/10 @ 632.8nm |
· finish: 10-5 S/D · parallelism:< 1 & prime; · provide standard membrane system or customized membrane system according to customer needs · high LIDT(Laser Induced Damage Threshold) |
| Optical Testing capacity

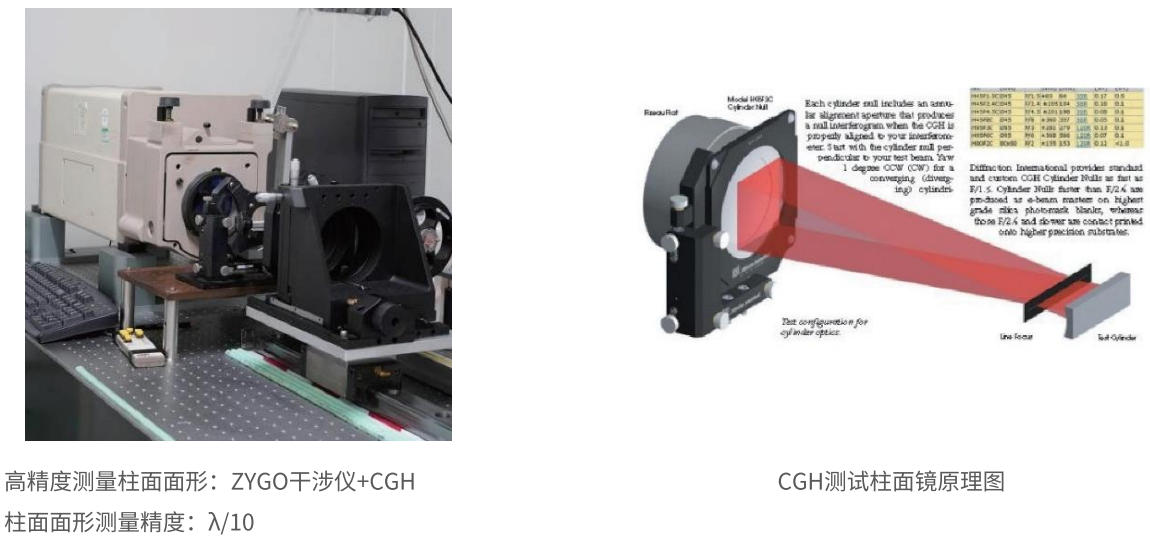

Computer Hologram (CGH) is commonly used as a zero-position Hologram in Optics cylindrical mirror testing.
We are equipped with Zygo Interferometer and high-precision cylindrical holographic imaging standard mirror to test the cylindrical wave front and surface shape. Each CGH can measure a series of similar but different sizes of column Lens with a measurement accuracyλ/10 @632.8nm
