Cesium lithium borate crystal (CsLiBALO, CLBO)

Specifications

| Product Introduction

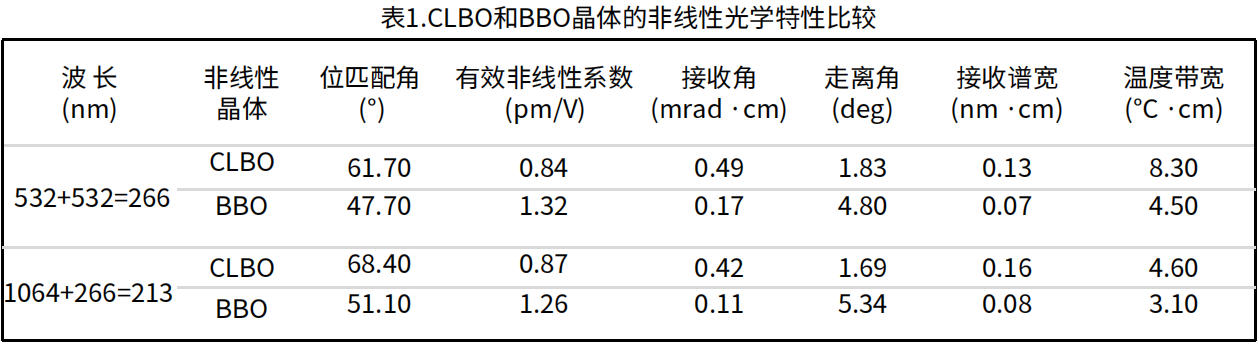

cesium lithium borate crystal (CsLiBTheOBright!The Noo,CLBO) is a new crystal material with excellent DUV(266nm) Nonlinearity characteristics, which is mainly used in high power Laser Source, micromachining, Optics communication, biomedicine, ultraviolet lidar and other fields.Compared with BBO crystal, CLBO crystal has the advantages of wide spectral range, large temperature tolerance, large receiving angle, small walk-off angle, etc. (see Table 1). Overall, it can achieve better conversion efficiency than BBO crystal, especially in the UV(355nm) band, which is the fourth and fifth harmonic generation crystal of high power Nd:YAG Laser Source.

| Key Benefits

·Shortwave cut-off Wavelength up to 180nm

·High conversion efficiency for Nd:YAG Laser Source

·Large effective Nonlinearity coefficient (about twice KDP)

·Large receiving angle and small walk-off angle

·Vacuum UV output of 193nm can be obtained by Phase matching

·No saturation for high energy output

·Short growth cycle and large crystal size

| We can provide

·Strict quality control

·Short growth cycle and large crystal size

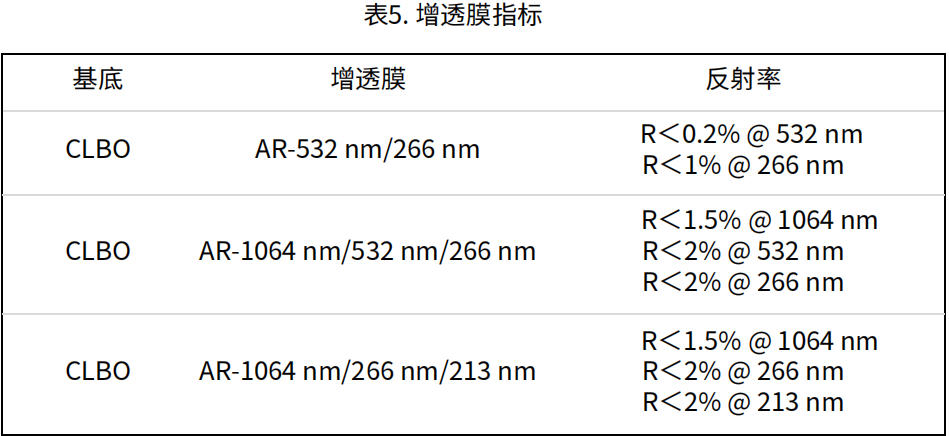

·Sealing bracket assembly or AR Coating (AR-coating)/Protective Coating (P-coating) plating to prevent deliquescence
