| Product Introduction

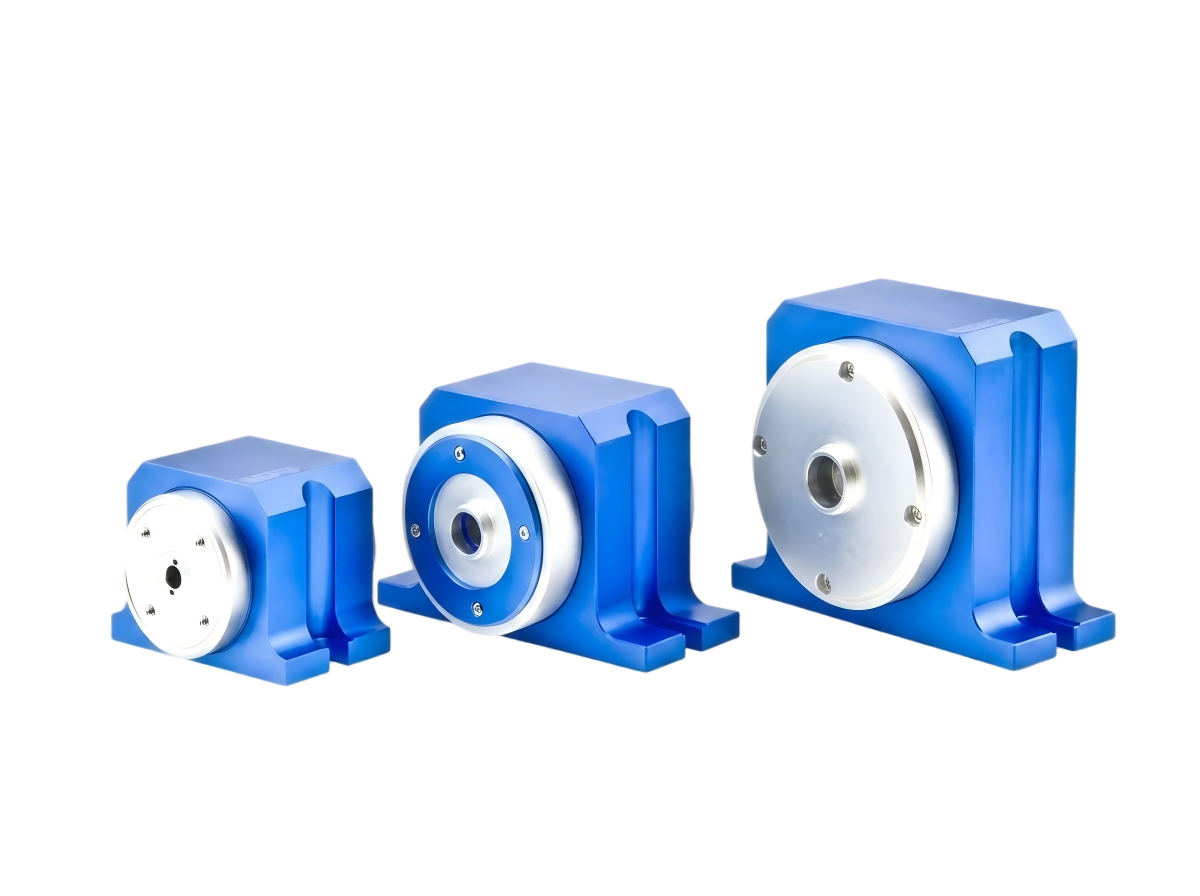

the Faraday rotator (Faraday rotators) to maintain the beam linear polarization while providing non-reciprocal rotation, when the light in a direction through the Faraday rotator, the Polarization State will rotate 45 °; when the beam in the opposite direction through the Faraday rotator, the Polarization State will be relative to the magnetic field in the same direction again rotated 45 °, the principle based on the coordination of the polarizer, can block the optical path of the return light. Our team provides the Faraday rotator by high Verdet Constant and low Absorption coefficient Magneto-optic Crystal, reliability is strong, M2 degradation is small. Combined with high damage threshold process, the product's Average Power can reach up to 500W and the Wavelength range is 355nm-4500nm.

| Application Field

· Laser sensing system

· OCT System

· Laser detection

· Ultrafast Laser system

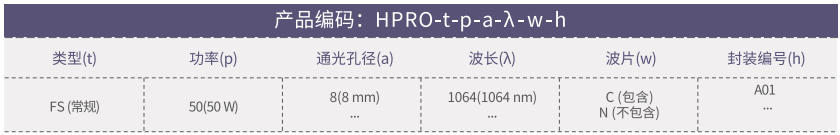

, our products are fully manufactured and can be customized according to customer needs. Standard products refer to the following list:

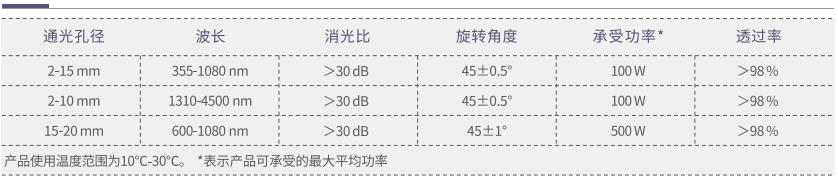

| Typical Reference Indicators

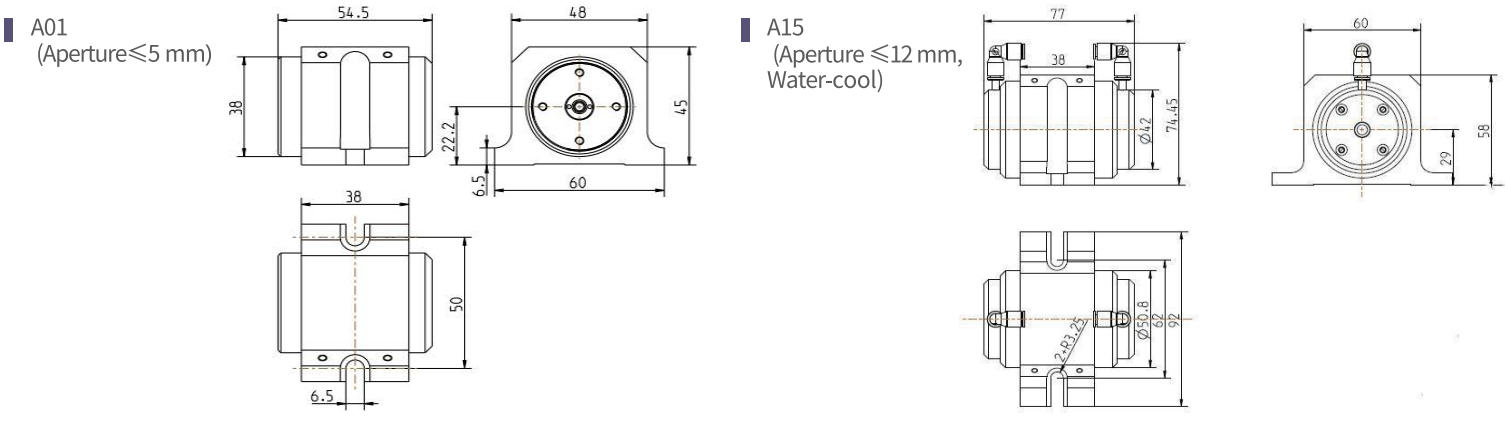

| Typical Package Dimensions Schematic (mm)
