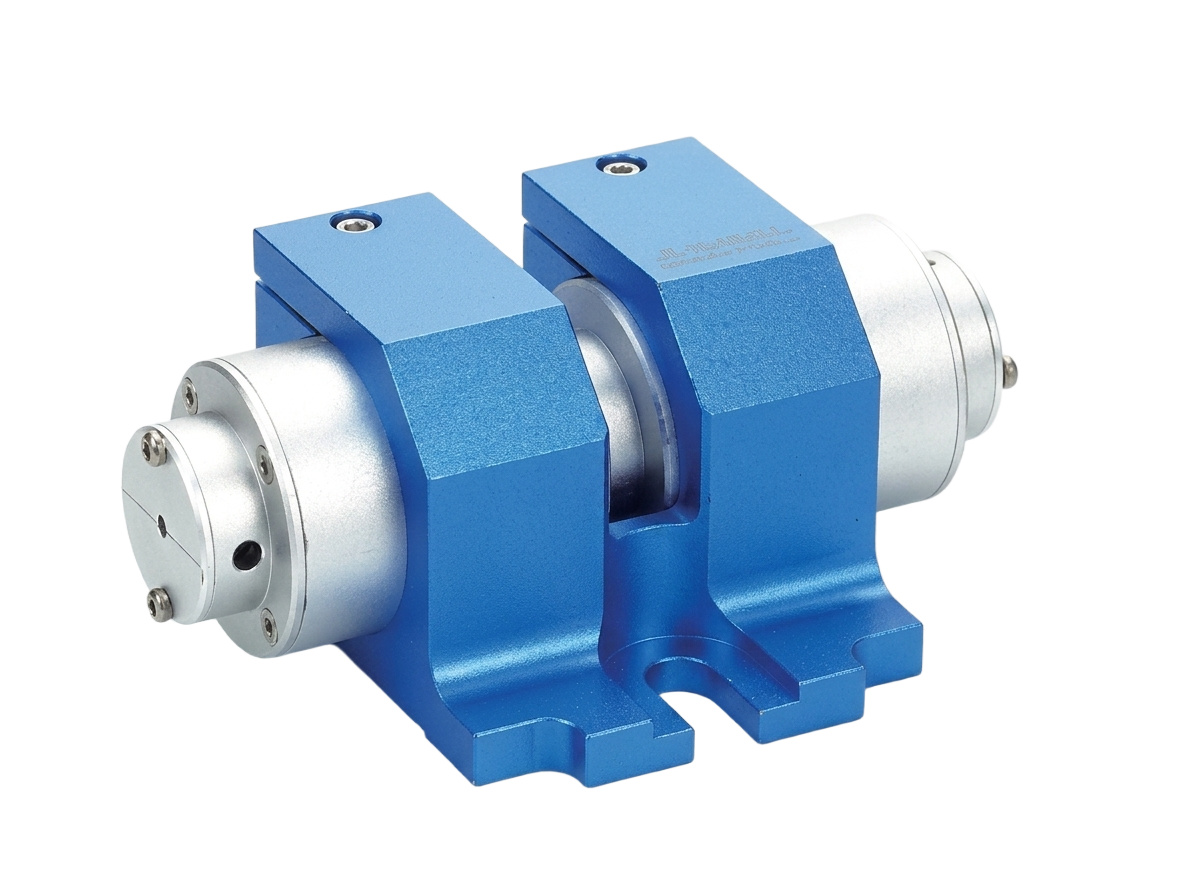

| Product Introduction

Free-space Optical Isolator (Free spaceisolators) can be divided into two types: polarization-dependent and polarization-independent. Polarization dependent Optical Isolator, also known as Faraday Optical Isolator, is mainly composed of a Polarizer, a Faraday rotator and a Analyzer (45 ° to the polarization axis of the Polarizer). The polarization-independent Optical Isolator is mainly composed of birefringent crystals (or polarizers), Faraday rotators and half-wave plates. It is usually used in Fiber Laser to effectively maintain the stability of the Optics system. We use high-quality Magneto-optic Crystal, with low Absorption, high Extinction Ratio, low loss and other characteristics, product performance is excellent, reliable, the maximum peak Isolation of 45dB, all products can be customized.

| Application areas

· Laser precision machining

· Laser sensing system

· ultrafast Laser system

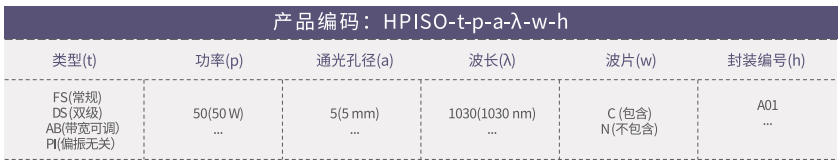

Our products are produced independently in the whole process and can be customized according to customer needs. Standard products refer to the following list:

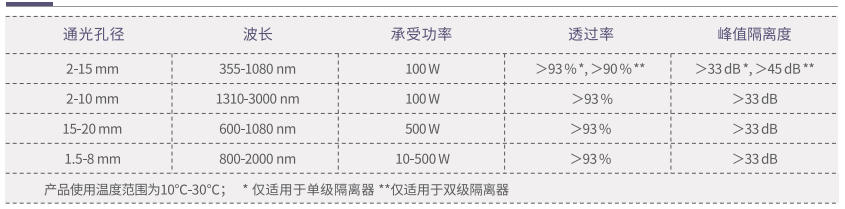

| Typical Reference Indicators

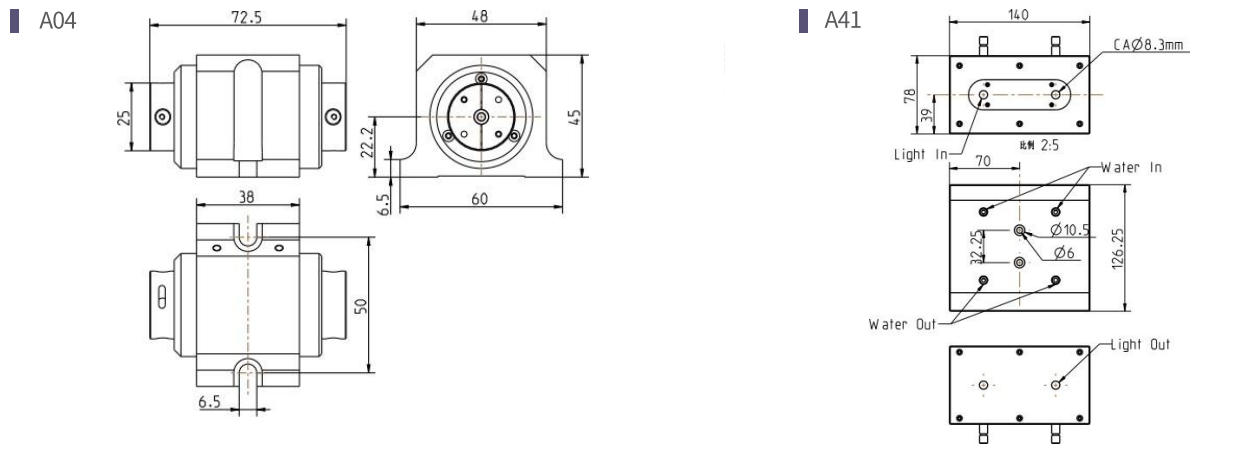

| Typical package size diagram (mm)
