| Product Introduction

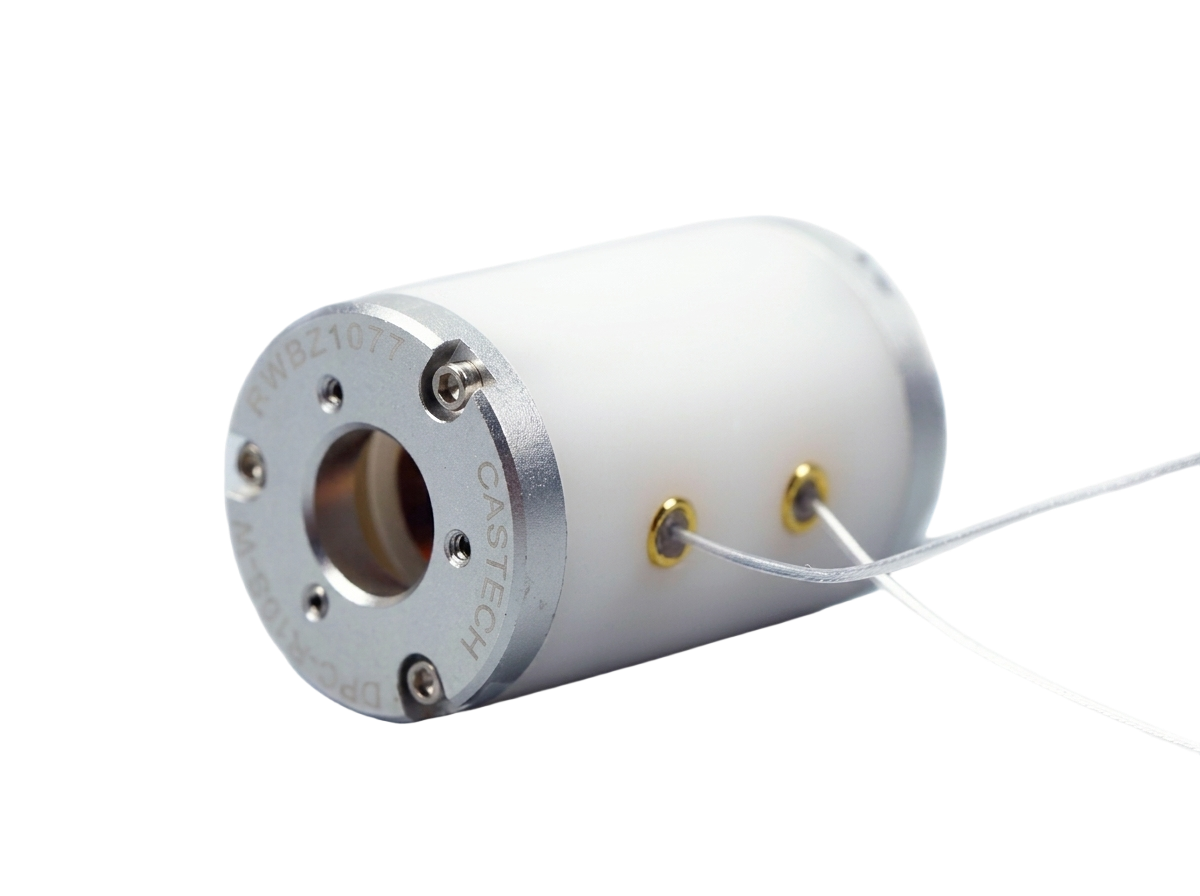

KD*P Pockels Cell (KD * P Pockelscells) is a Laser modulation component based on KD*P (DKDP) electro-optic effect. Such products can be divided into horizontal and vertical types according to the direction of the electro-optic effect. When the transverse type KD*P Pockels Cell works, the light propagation direction is perpendicular to the electric field. By controlling the number and size of electro-optic crystals, we can effectively reduce the working voltage to the hundred volt level and achieve MHz Repetition Rate. When the vertical type product is working, the direction of light propagation is parallel to the electric field. The longitudinal KD*P Pockels Cell developed by our team has excellent Optics Uniformity, high Extinction Ratio and high transmittance.

| Application areas

· Q switch · regenerative amplification · pulse Selection · empty

· chopper · high frequency optical switch · optical power stability

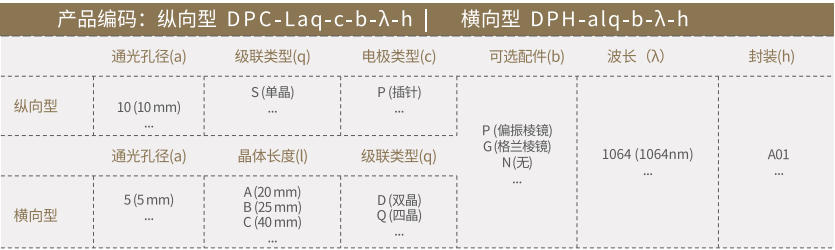

Our products full process of independent production, can be customized according to customer needs, standard products refer to the following list:

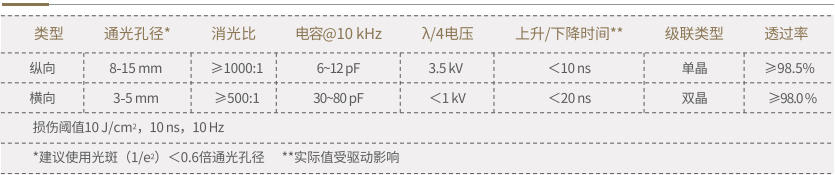

| Typical Reference Indicators

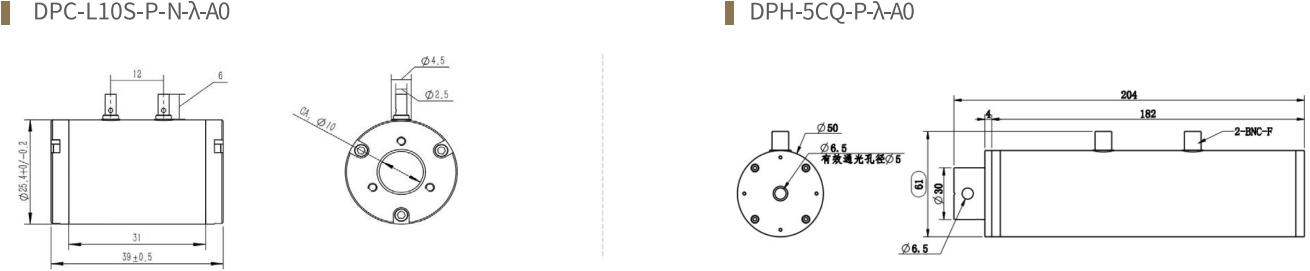

| Typical package size diagram (mm)
