Specifications
| Product Overview
In addition to providing the most comprehensive Laser Power/energy meter probes, Ophir can also provide the most comprehensive Laser Power/energy meter meter heads, each of which is universal: all power/energy meter probes can be connected to Ophir.
| Features
Centauri-the most powerful smart handheld Laser Power energy meter
•Can be used with all Ophir thermopile, BeamTrack, pyroelectric and Photodiode (PD) probes •Highlight color 7 inch large touch screen •Includes single-channel and dual-channel models •Limit setting and overrun alarm •Backlit keys for easy operation in dark rooms | •Support USB mobile storage device plug directly, to provide a greater degree of data storage •Record data up to 10,000Hz when used with pyroelectric probe •Support Ethernet networking transport interface •Built-in USB and RS232 interface to communicate with computer, convenient for StaLab,StarCom PC application; can use LabVIEW,COM Object and ActiveX software operation |

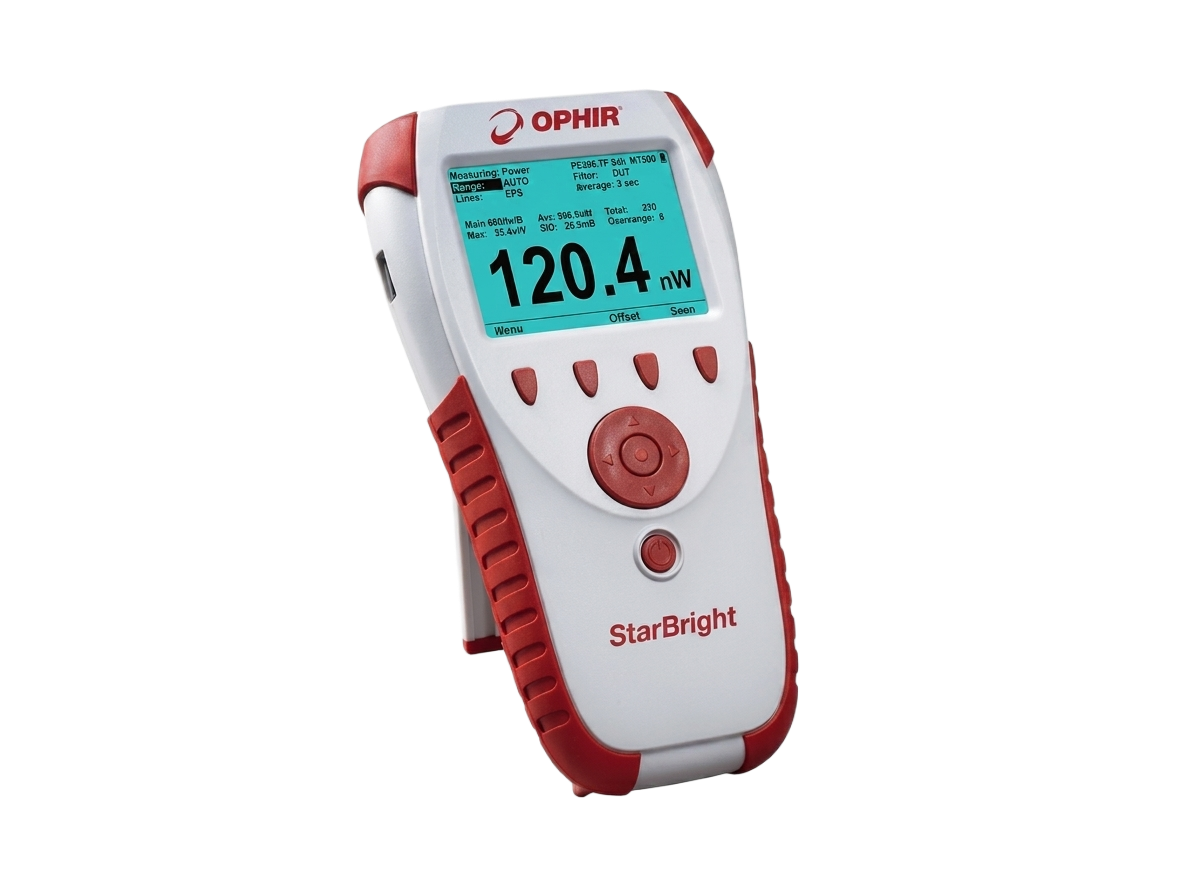

StarBright-the most powerful hand-held Laser Power energy meter with color display
• Can be used with all Ophir thermopile, BeamTrack, pyroelectric and Photodiode (PD) probes •Highlight color large TFT 320 x 240 display •Portable and comfortable handheld design, second-order height adjustment bracket •Digital or analog pointer display •Backlit keys for easy operation in dark rooms | •Analog output •Record data up to 5,000Hz when used with pyroelectric probe •External USB flash drive to store data •Built-in USB and RS232 interface to communicate with computer, convenient for StaLab,StarCom PC application; can use LabVIEW,COM Object and ActiveX software operation |
VEGA-the most complete function, color display handheld Laser Power energy meter head
•Can be used with all Ophir thermopile, BeamTrack, pyroelectric and Photodiode (PD) probes •Highlight color large TFT 320 x 240 display •Portable and comfortable handheld design, second-order height adjustment bracket •Digital or analog pointer display •Backlit keys for easy operation in dark rooms | •Analog output •Record data up to 4,000Hz when used with pyroelectric probe •Can store 250,000 data • Built-in USB and RS232 interface to communicate with computer, convenient for StaLab,StarCom PC application; can use LabVIEW,COM Object and ActiveX software operation |
NovaI-Handheld Multi-Function Laser Power Energy Meter
• Can be used with all Ophir thermopile, BeamTrack, pyroelectric and Photodiode (PD) probes •High resolution large size LCD 320 x 240 display •Two position adjustment brackets •Digital or analog pointer display •Backlit display with replaceable batteries | •Analog output • Record data up to 4,000Hz when used with pyroelectric probe •Can store 54,000 data •Built-in USB and RS232 interface to communicate with computer, convenient for StaLab,StarCom PC application; can use LabVIEW,COM Object and ActiveX software operation |
Laserstar-Multi-Function Laser Power/Energy Meter
•Two styles available: single/dual channel; single channel can be upgraded to dual channel •Can be combined with all Ophir thermopile, BeamTrack, pyroelectric, Photodiode (PD), RP probe •Large size LCD display •Display charts and statistics (std dev.min,max) •Backlit display with replaceable batteries | •Analog output •Built-in RS232 interface •Record data up to> 1500Hz when used with pyroelectric probes •Can store 54,000 data •RS232 interface and computer communication, it StarCom PC applications; can use LabVIEW, software operation •GPIB (optional) |
StarLite-Economical Laser Power Energy Header
•Can be used with all Ophir thermopile, BeamTrack,PE-C, pyroelectric and Photodiode (PD) probes •Highlight large TFT 320 x 240 display •Portable and comfortable handheld design, optimized adjustment bracket •Digital or analog pointer display | •Backlit, replaceable battery •Analog output •Power averaging function •Can change the display chart scale •EMI anti-electromagnetic interference |
