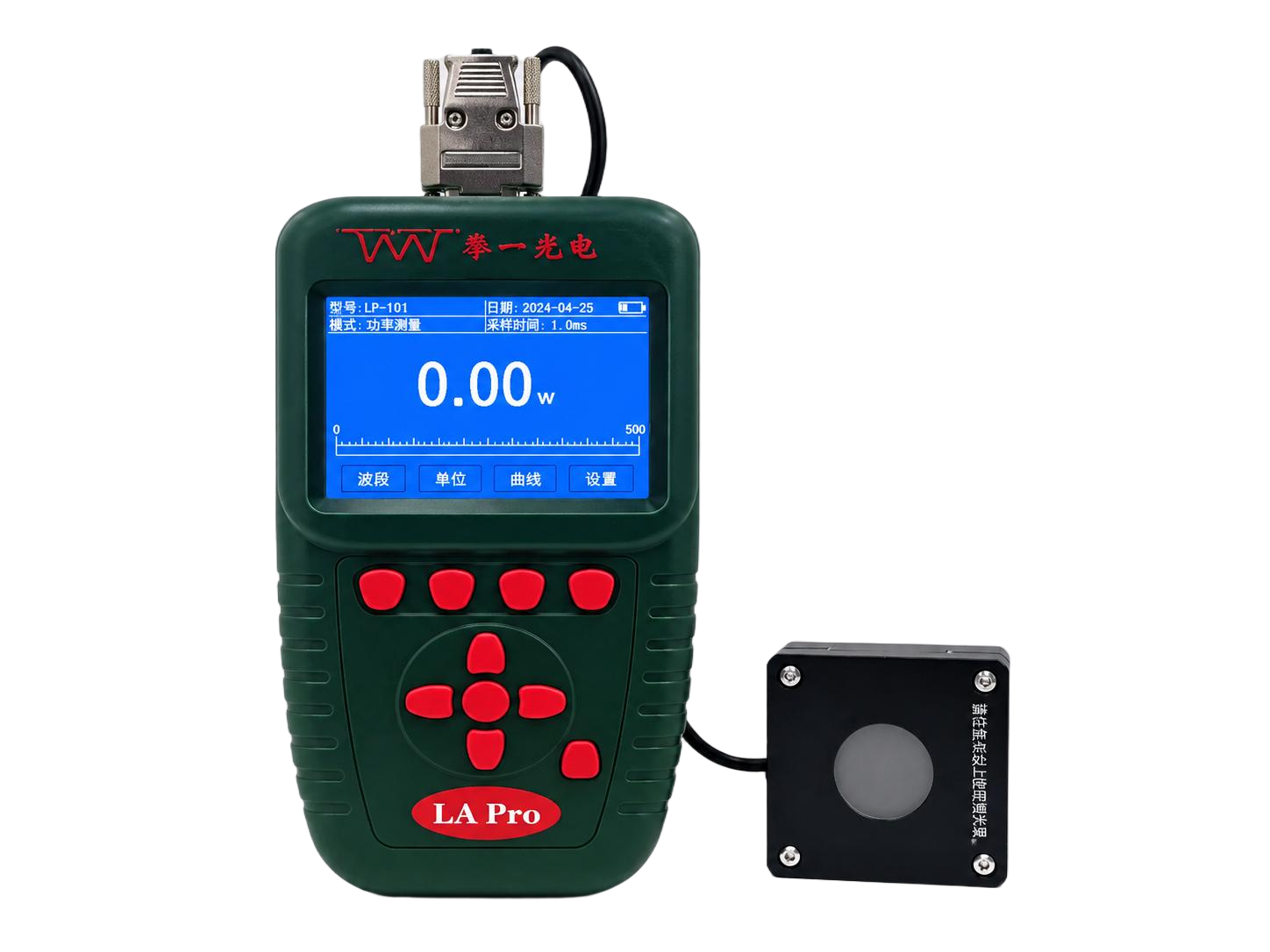

Laser power meter probe
- Calibrating NIST Traceability
- Small form factor, optimized heat sink design
Specifications
| Product Features
· light spectral Wavelength range: 0.19 - 11μm
· school quasi wave long fan wai:0.19-2.1μ m2.94μ m9-11μm
· calibrating NIST Traceability
· small form factor, optimized heat sink design
·20mm thickness probe, suitable for measurement in narrow optical path
· connection mode: header LA Pro
With head series/low power ultra-thin probe
· Spectral Wavelength range: 0.19-11um
Calibration Wavelength range: 0.19-2.1um, 2.94um, 9-11um
· Correct NIST Traceability
· Small form factor, optimized heat sink design
· 20mm thickness probe, suitable for measurement in narrow optical path
Connection mode: header LA Pro
With head series/low power air-cooled probe
· Spectral Wavelength range: 0.19-11um
Calibration Wavelength range: 0.19-2.1um, 2.94um, 9-11um
· Calibration traceable to NIST
· Small shape, with fan
Optimized heat sink design, high load power
· Square probe, easy to integrate, can be easily installed to the device
· Connection method: LA Pro meter head
With head series/medium and high power air-cooled probe
· Spectral Wavelength Range: 0.19–11 µm
· Calibration Wavelength range: 0.19–2.1 µm, 2.94 µm, 9–11 µm
· Calibration traceable to NIST
· Optimized heat sink design, high power handling capability
· Square probe, easy to integrate, and can be conveniently mounted on equipment.
· Connection method: LA Pro meter head
With head series/low and medium power high damage threshold air-cooled probe
· Extremely high damage threshold, 150KW/cm², can be measured directly at the outlet of the Laser Source
· Spectral Wavelength Range: 0.19–11 µm
Calibration Wavelength range: 0.19-2.1um,2.94um,9-11um
· Calibration traceable to NIST
· Compact design, with a fan
· Optimized heat sink design, high power handling capability
Square probe, suitable for measurement in narrow optical path
· Connection method: LA Pro meter head
Air-cooled probe with head series/medium and high power and high damage threshold
· Ultra-high damage threshold, 150 kW/cm², enabling direct measurement at the Laser Source output.
· Spectral Wavelength Range: 0.19–11 µm
· Calibration Wavelength range: 0.19–2.1 µm, 2.94 µm, 9–11 µm
· Calibration traceable to NIST
· Optimized heat sink design, high power handling capability
· Square probe, easy to integrate, and can be conveniently mounted on equipment.
· Connection method: LA Pro meter head
With head series/medium and high power Water Cooling probe
Extremely high damage threshold, 5KW/cm² @ 200W
· Spectral Wavelength Range: 0.19–11 µm
· Calibration Wavelength range: 0.19–2.1 µm, 2.94 µm, 9–11 µm
· Calibration traceable to NIST
· Optimized heat sink design, high power handling capability
Circular probe, easy to integrate, can be easily installed to the device
· Connection method: LA Pro meter head
Serial port, USB low and medium power ultra-thin probe
· Spectral Wavelength Range: 0.19–11 µm
· Calibration Wavelength range: 0.19–2.1 µm, 2.94 µm, 9–11 µm
· Calibration traceable to NIST
· Compact form factor, optimized heat sink design
· 20mm thickness probe, suitable for measurement in narrow optical path
· Square probe, easy to integrate, and can be conveniently mounted on equipment.
· Optics fitting installation thread
Serial port, USB series/low and medium power air-cooled probe
· Spectral Wavelength Range: 0.19–11 µm
· Calibration Wavelength range: 0.19–2.1 µm, 2.94 µm, 9–11 µm
· Calibration traceable to NIST
· Compact design, with a fan
· Optimized heat sink design, high power handling capability
· Square probe, easy to integrate, and can be conveniently mounted on equipment.
· Optics accessory mounting thread
Serial port, USB series/medium and high power air-cooled probe
· Spectral Wavelength Range: 0.19–11 µm
· Calibration Wavelength range: 0.19–2.1 µm, 2.94 µm, 9–11 µm
· Calibration traceable to NIST
· Compact design, with a fan
· Optimized heat sink design, high power handling capability
· Square probe, easy to integrate, and can be conveniently mounted on equipment.
· Optics accessory mounting thread
