non-polarizing beam splitter

non-polarizing beam splitter
Specifications
| Product Introduction

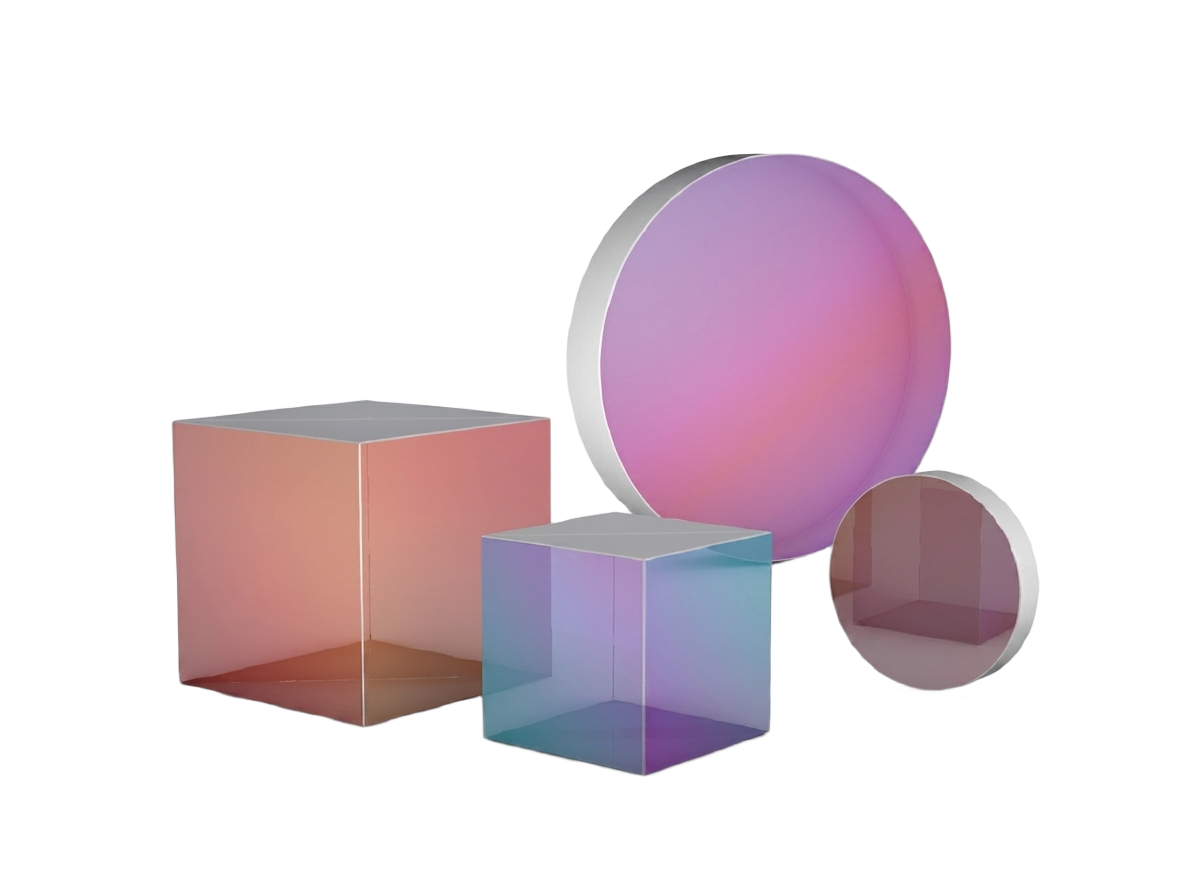

a non-polarizing beam splitter, without changing the S and P polarization states, divides the incident beam into a specific proportion of the outgoing beam. We provide a variety of non-polarizing beam splitters, including UV(355nm) Laser spectral line non-polarizing cube beam splitters, Laser spectral line non-polarizing cube beam splitters, broadband non-polarizing cube beam splitters, Laser spectral line non-polarizing plate beam splitters, and broadband non-polarizing plate beam splitters. Our beam splitters use all-dielectric coatings or broadband metal and dielectric hybrid coatings to improve product Optics performance while maintaining high LIDT(Laser Induced Damage Threshold).

·

materials from DUV(266nm) to Infrared(IR,1030/1064nm) band range available

· Customizable shape and size

·

diameter range: 1 - 100mm

· Clear Aperture: center diameter 90% area

· Transmitted Wavefront Distortion: & lambda;/4 @ 632.8nm

·

finish: 20/10 S/D

· Beam Deviation:< 5 & prime;

· Provide standard membrane system or customized membrane system

· High LIDT(Laser Induced Damage Threshold)

| Optical Testing Capacity

non-polarizing beam splitter
