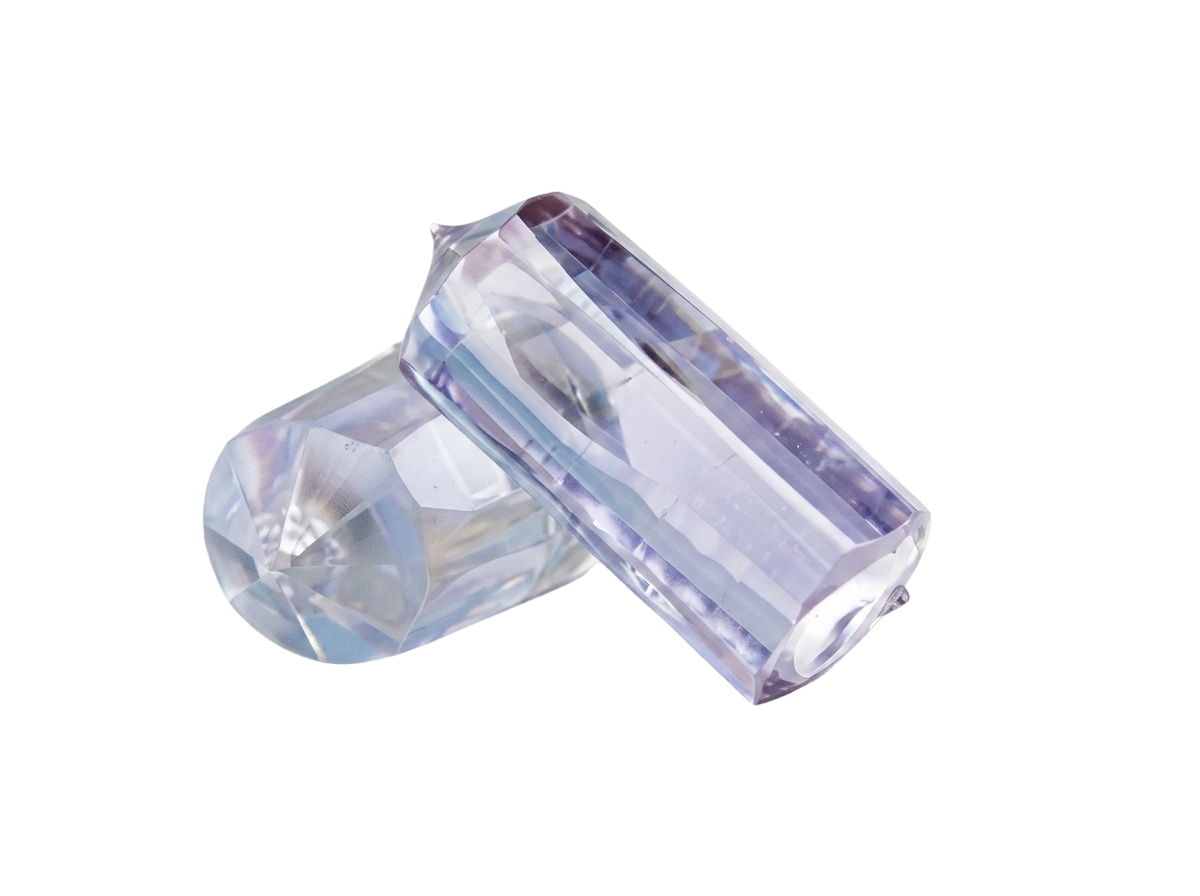

Neodymium-doped yttrium lithium fluoride crystal (Nd:YLF)
Specifications
Specifications
| Product Introduction
We use the pull method to grow neodymium-doped yttrium lithium fluoride crystals (Nd:YLF), in the crystal growth process using high-quality raw materials, with He-Ne Laser Source to carefully check the crystal inside the scattering particles, the entire blank with Interference method to test to ensure that each crystal quality.
| We can provide
|
· round bar diameter 2~10mm, length 1~150mm · Optical Axis orientation accuracy <1 ° · Nd doping concentration 0.4~1.2 at.% |
· can be Polishing or plated AR Coating ·can provide larger outer diameter and thickness or non-standard doping concentration Nd:YLF crystal |

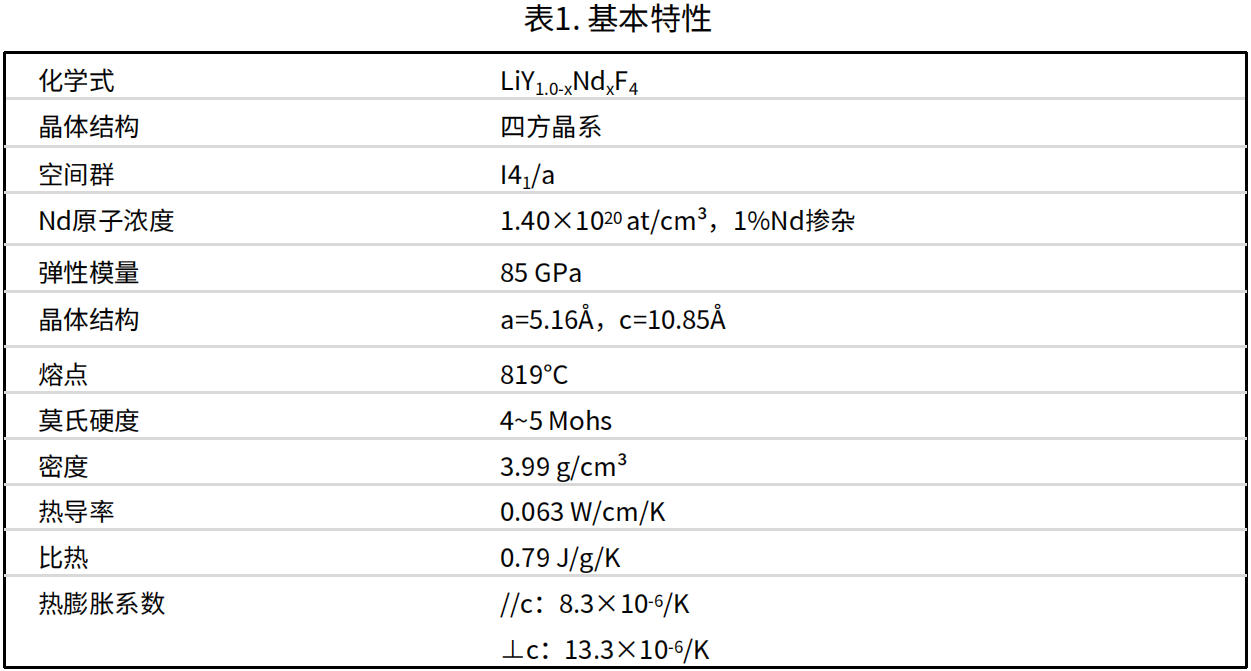

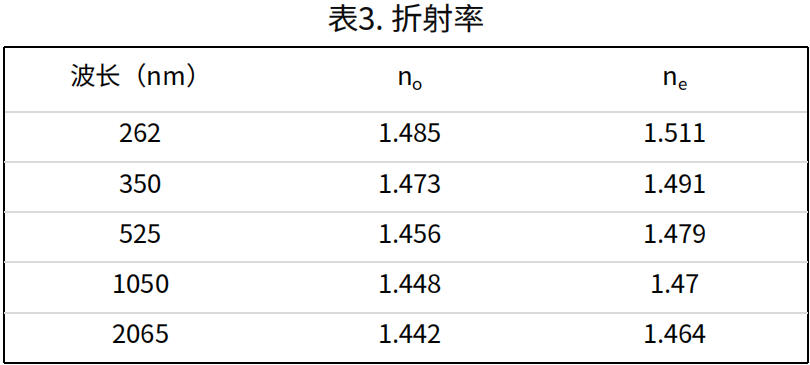

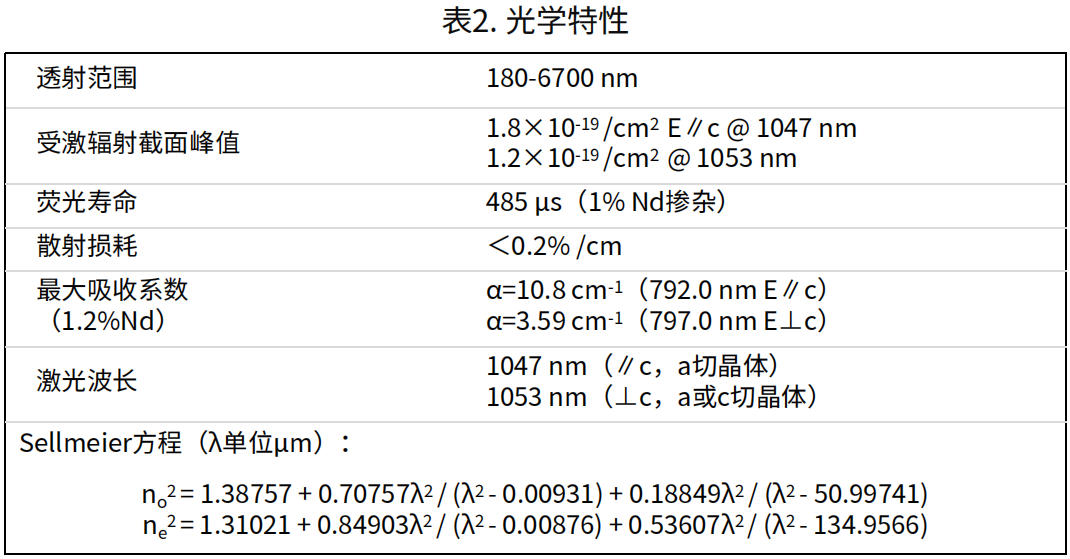

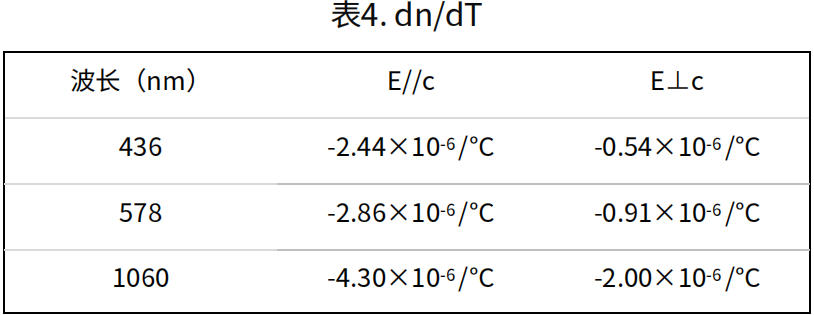

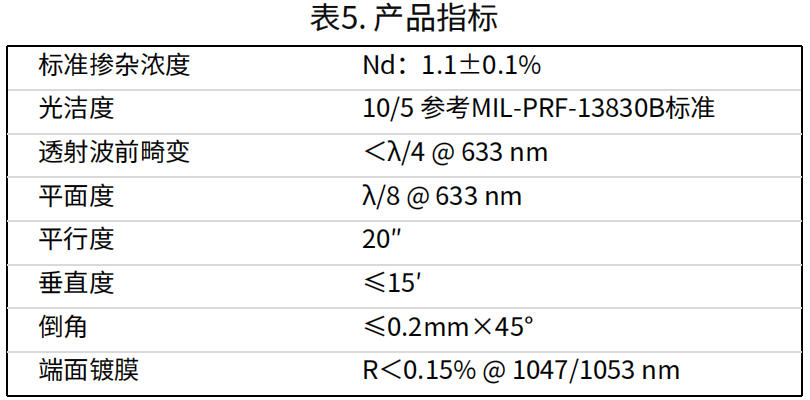

| Nd:YLF
crystal specification index
Neodymium-doped yttrium lithium fluoride crystal (Nd:YLF)
