Optical Prism

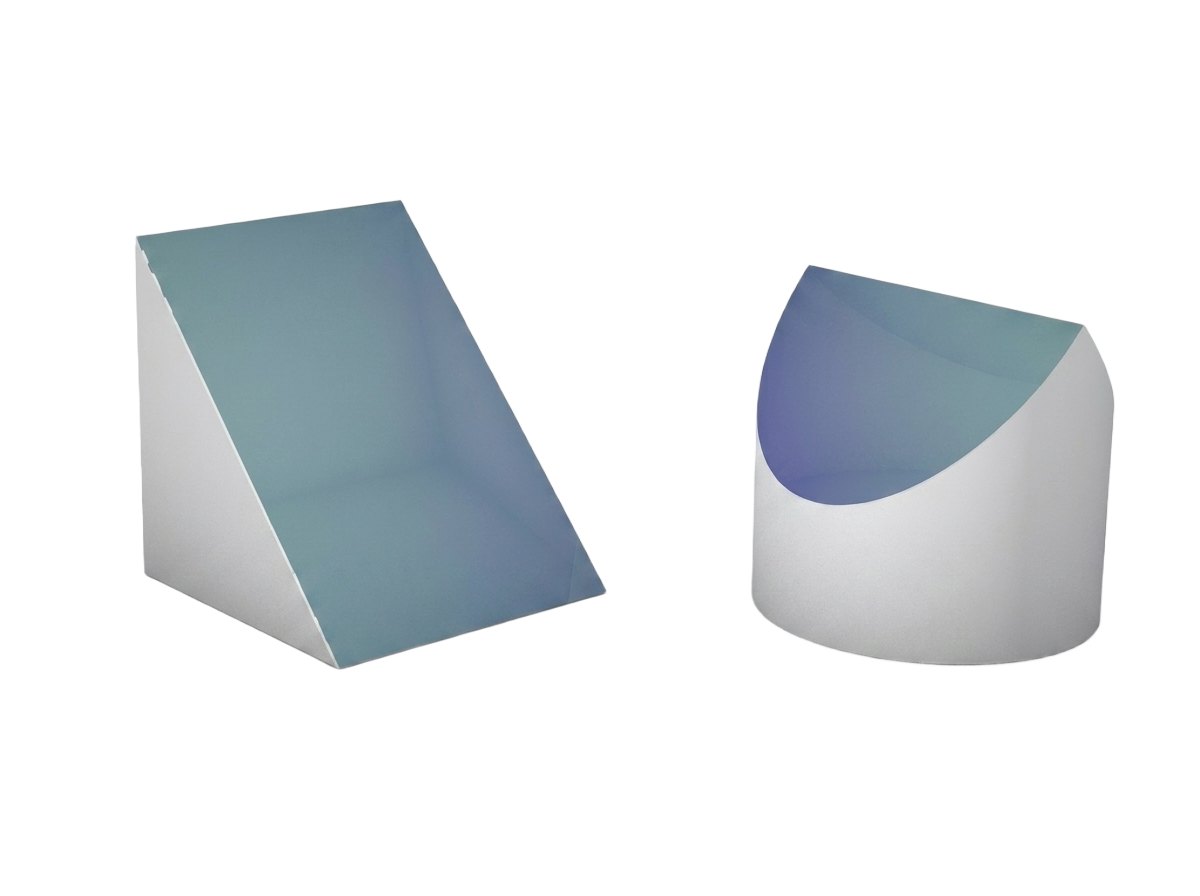

provide different sizes, different substrate materials and different film systems of various Prism, such as Pentagonal Prism Prism, Right‑Angle Prism Prism, Dove Prism Prism, Roof Prism Prism, Porro Prism Prism, pyramid Prism, shaping prism group, Palin Broca Prism, equilateral Dispersion Prism, etc.
Using different processing methods, such as traditional Polishing, ring throw or Ion Beam Polishing (IBP) Polishing (IBF) and advanced test equipment,can be highly demanding high-power Laser, scientific research and industrial applications tailored to a variety of high-precision Optical Prism.
|
· Materials from DUV(266nm) to Infrared(IR,1030/1064nm) bands range from
· Customizable shape and size
· diameter range: 0.5-100mm · Clear Aperture: center diameter 90% area· Flatness: & lambda;/10 @ 632.8 nm |
· finish: 10/5 S/D · Parallelism:< 15 " · Provide standard membrane system or customized membrane system · High LIDT(Laser Induced Damage Threshold) |

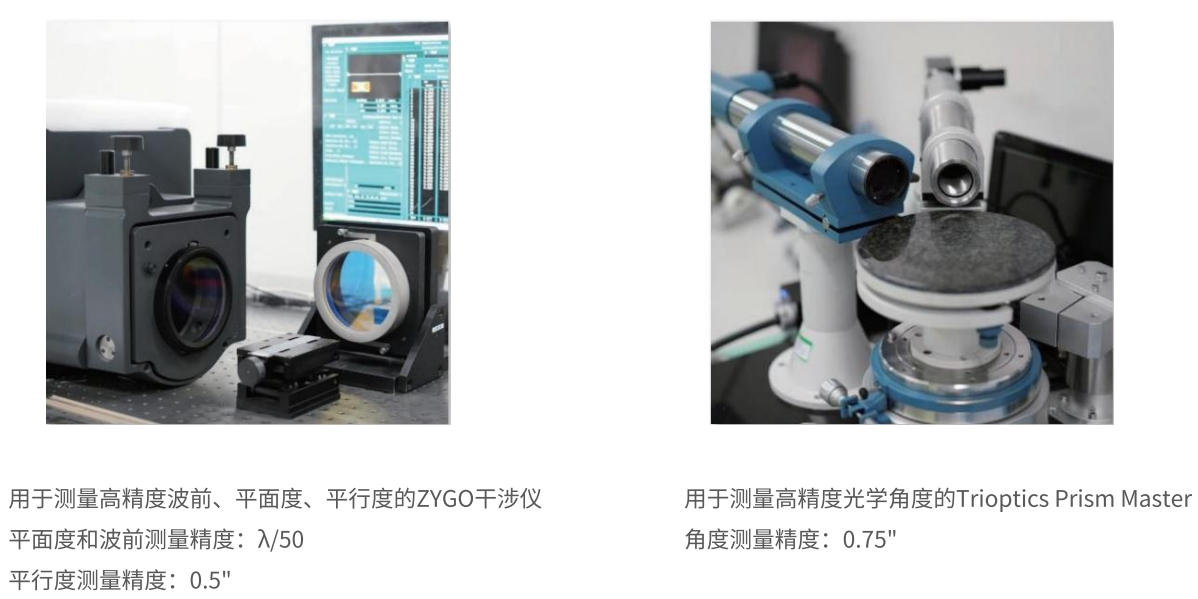

, we are not only equipped with Zygo Interferometer and 4D Interferometer to ensure high surface Flatness, but also equipped with precision goniometers and high-power microscopes to ensure high-precision Angle Tolerance and finish indicators to ensure that customer needs are met.
