Optics Window

Optics Window
Specifications
| Product Features

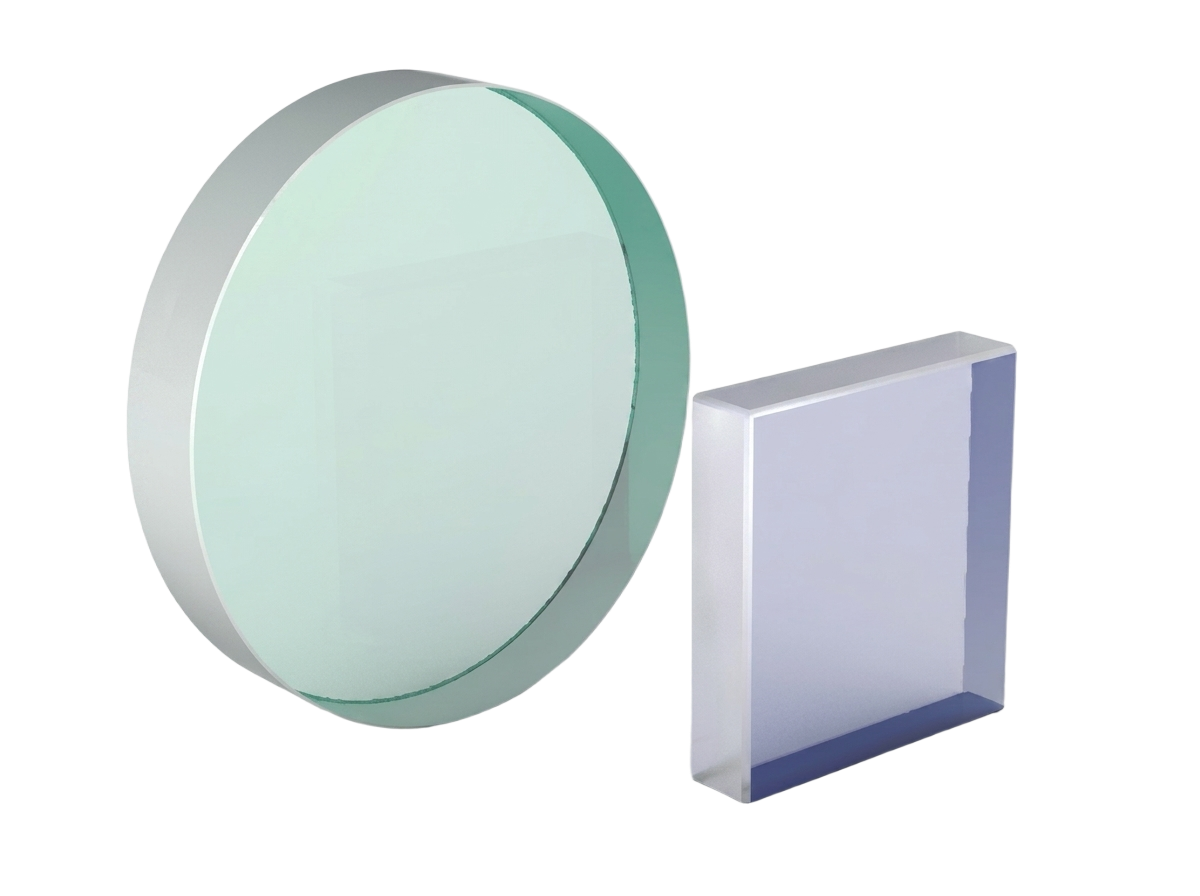

, our Optics windows are available in a variety of Optics glass materials, such as Fused Silica, BK7, CaF₂ (CaF₂), Barium Fluoride (BaF₂) (BaF₂ ), Silicon (Si) (Si), Zinc Selenide (ZnSe) (ZnSe), etc. Can provide a variety of film structure and different coating process of the window, the product is mainly used in ultraviolet (UV), visible or Infrared(IR,1030/1064nm) (IR) Wavelength range. Through traditional Polishing, double-sided Polishing and Ion Beam Polishing (IBP) Polishing (1BF) and other different processing methods, every year to produce millions of standard and custom window sheet. Our products have high surface shape, low scattering, high precision index and high LIDT(Laser Induced Damage Threshold) characteristics, to meet the laser and precision Optics application requirements.

·

materials from DUV(266nm) to Infrared(IR,1030/1064nm) band range available

· Customizable shape and size

·

diameter range: 0.5 - 600mm, rectangular up to 1000 x 600mm

· Clear Aperture: center diameter 90% area

· Flatness: PVX/40 @ 632.8nm

·

finish: 10/5 S/D

· Parallelism:< 1 "

· Provide standard membrane system or customized membrane system

· High LIDT(Laser Induced Damage Threshold)

| Optical Testing Capacity

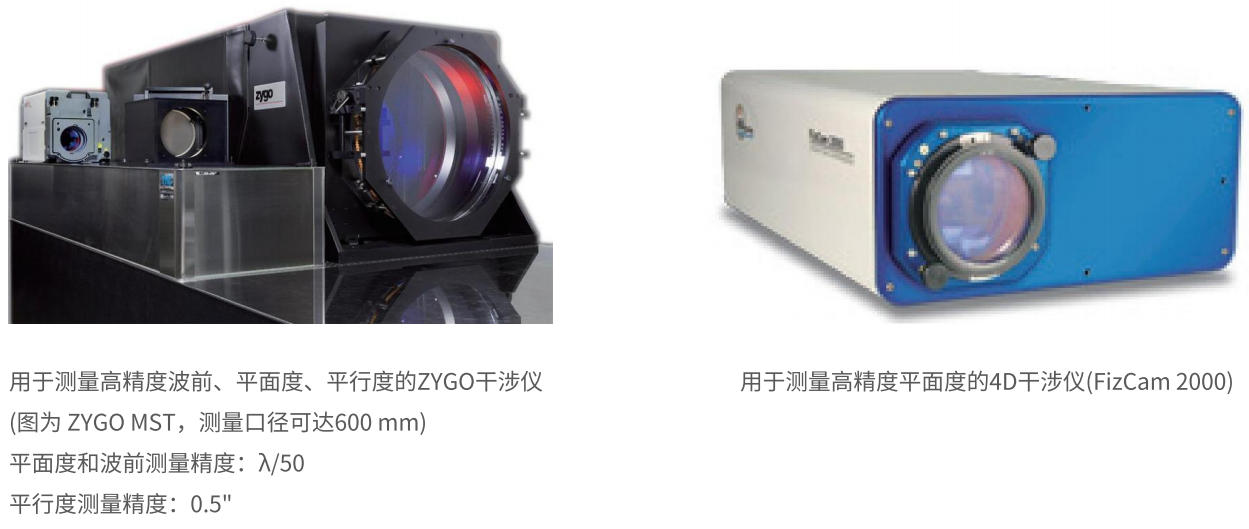

, we are equipped with advanced Optical Testing equipment, including ZYG0 Interferometer, ZYGOMST Interferometer, 4D Interferometer Interferometer, TaylorHobson LuphoScan260, microscopes, etc., to ensure that the window products are consistently high-quality performance, so as to meet Laser, thermal imaging, medical, spectroscopy and other applications Strict requirements.
