polarization beam splitter
| Product Features

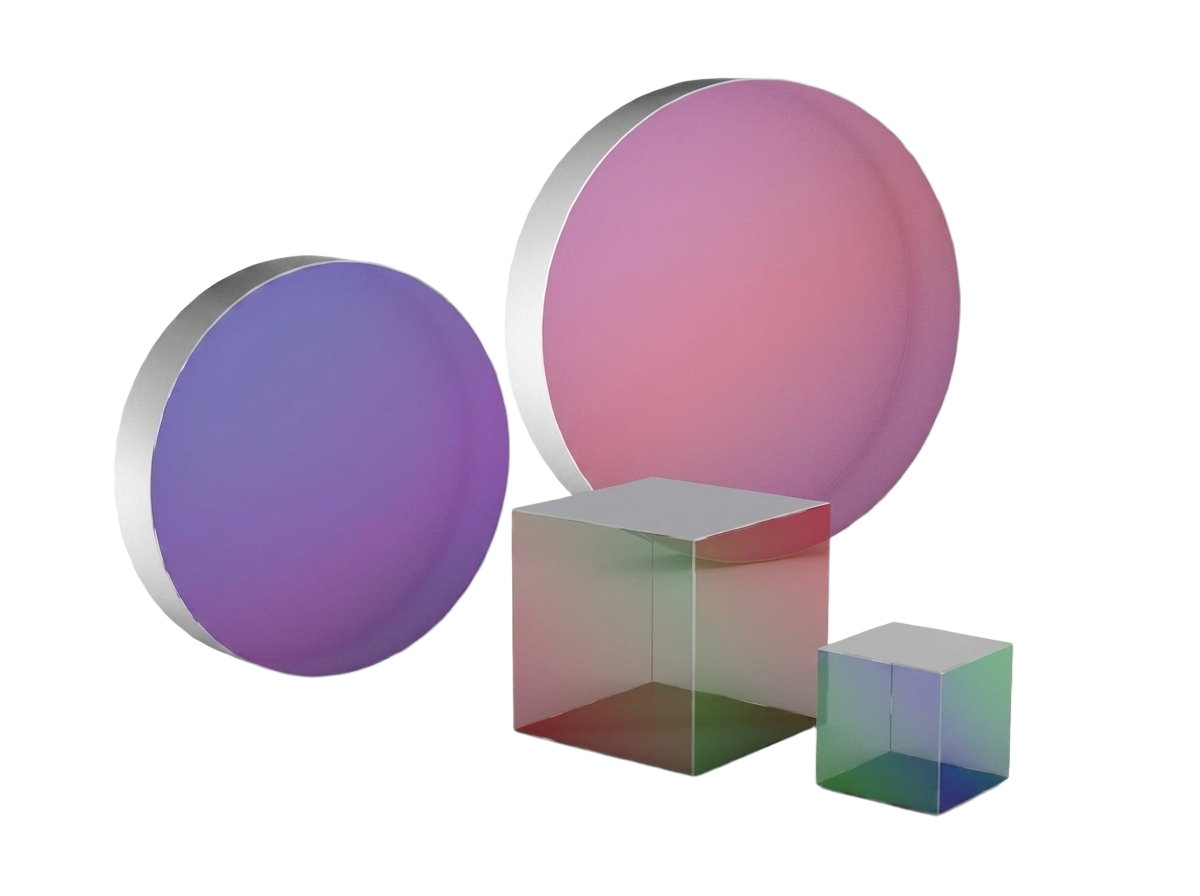

The polarizing beam splitter splits the unpolarized light into two orthogonal linearly polarized beams.
We provide a variety of polarization beam splitters, including UV(355nm) Laser line polarization cube beam splitter, Laser line polarization cube beam splitter, broadband polarization cube beam splitter, Laser line polarization plate beam splitter, broadband polarization plate beam splitter.
Coating is a key process in the manufacture of high-performance polarization beam splitters. Fujing Technology has a variety of professional coating processes, such as IBS, IAD, E-Beam and MS, to meet the needs of customers with high Extinction Ratio and high damage threshold.
Among them, the high-power Laser spectral polarization cube beam splitter is made by optical glue (rather than glue), and the damage threshold is as high as 20J/cm² @ 1064nm, which is ideal for high-power Laser applications.
|
· materials range from DUV(266nm) to Infrared(IR,1030/1064nm) bands available · customizable shapes and sizes · diameter range: 1 - 100mm · clear Aperture: 90% of the center diameter · transmitted Wavefront Distortion: & lambda;/4 @ 632.8nm |
· finish: 20/10 S/D · beam deviation:< 5 & prime; · extinction Ratio:> 1000:1 (cubic) · provide standard membrane system or customized membrane system according to customer needs · high LIDT(Laser Induced Damage Threshold) |

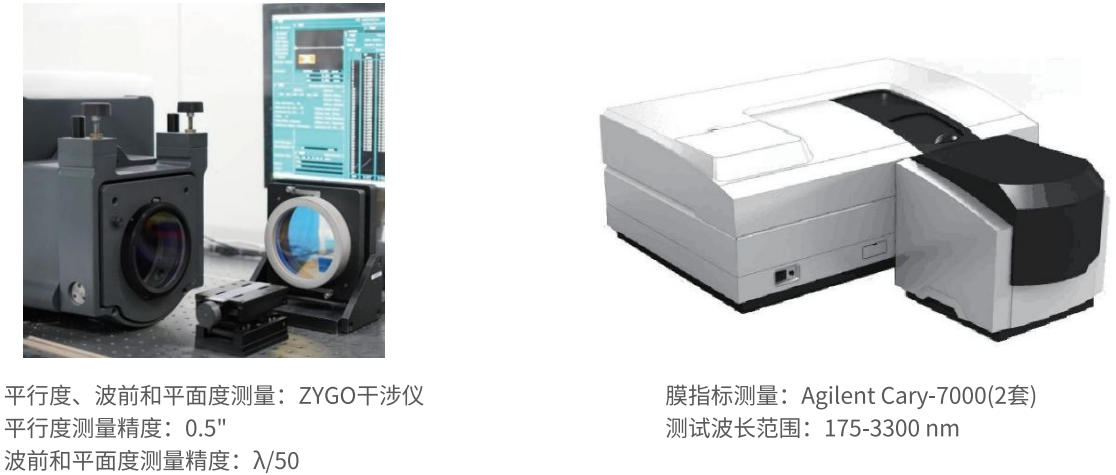

| Optical Testing capacity
Extinction Ratio is a key indicator of Polarizer Prism. We use the polarization Extinction Ratio (PER) measurement system, which can simultaneously measure the polarization Extinction Ratio ( PER) and Extinction Ratio (ER).
