| Product Introduction

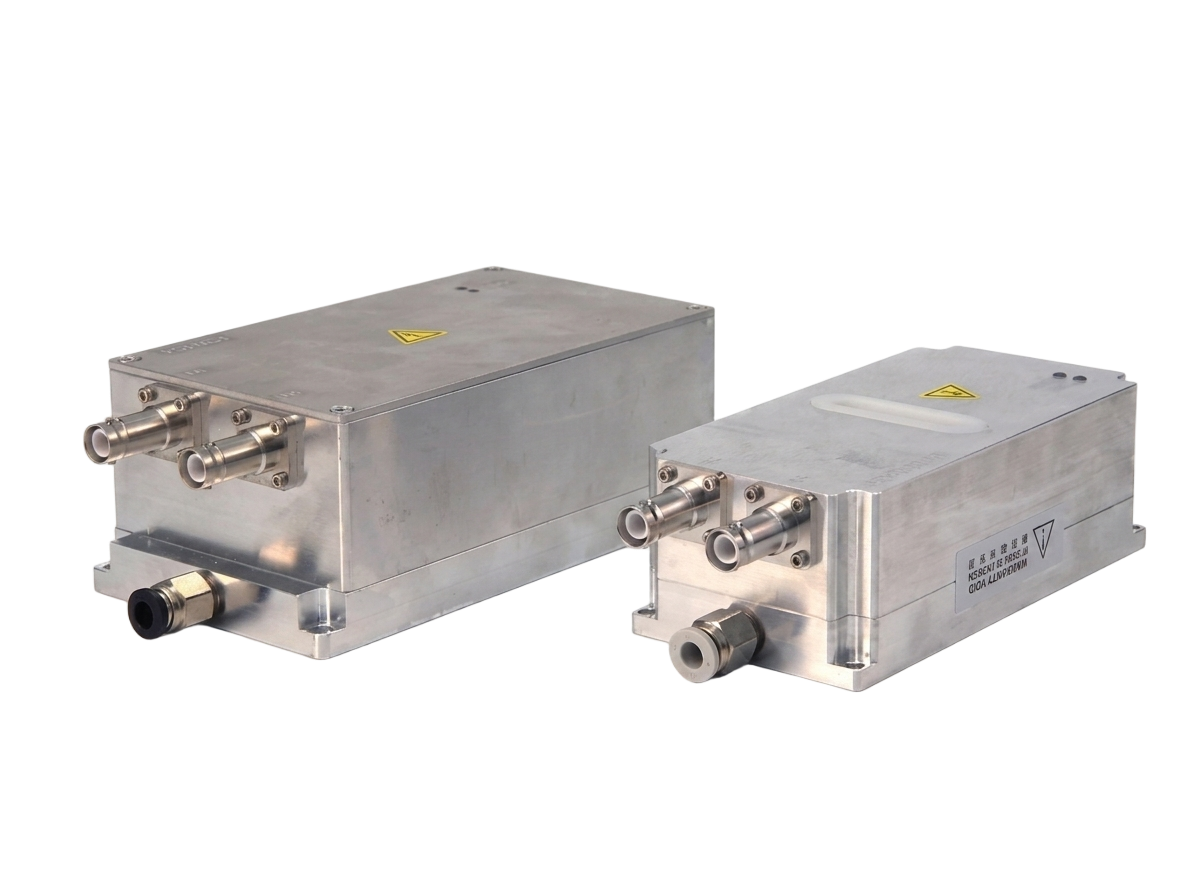

Pockels Cell driver (Pockels celldrivers) is specially developed to adapt to various types of Pockels Cell devices. When the driver receives the trigger signal, the output will produce a high-voltage signal of the same frequency. The drive is modular in design and is suitable for industrial integration. Our Pockels Cell driver has been upgraded to improve the maximum output frequency capability, and can adapt to RTP and BBO Pockels Cell Pockels Cell (≥ 1MHz) of more apertures and applications, and the minimum pulse width can reach 20ns or more (PCDH series). The output waveform can be divided into three categories: boost, depressurization and square wave. At the same time, we are also continuously improving the voltage level and frequency level, and provide product customization services.

| Application areas

· various types of Pockels Cell

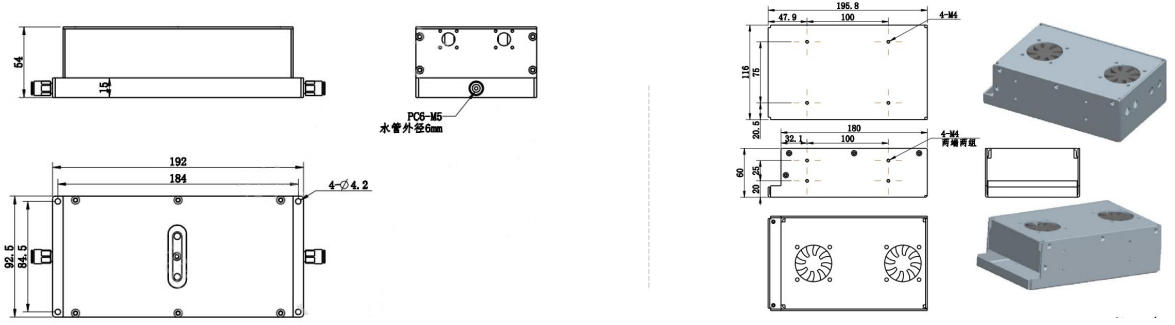

| Typical package size diagram (mm)
