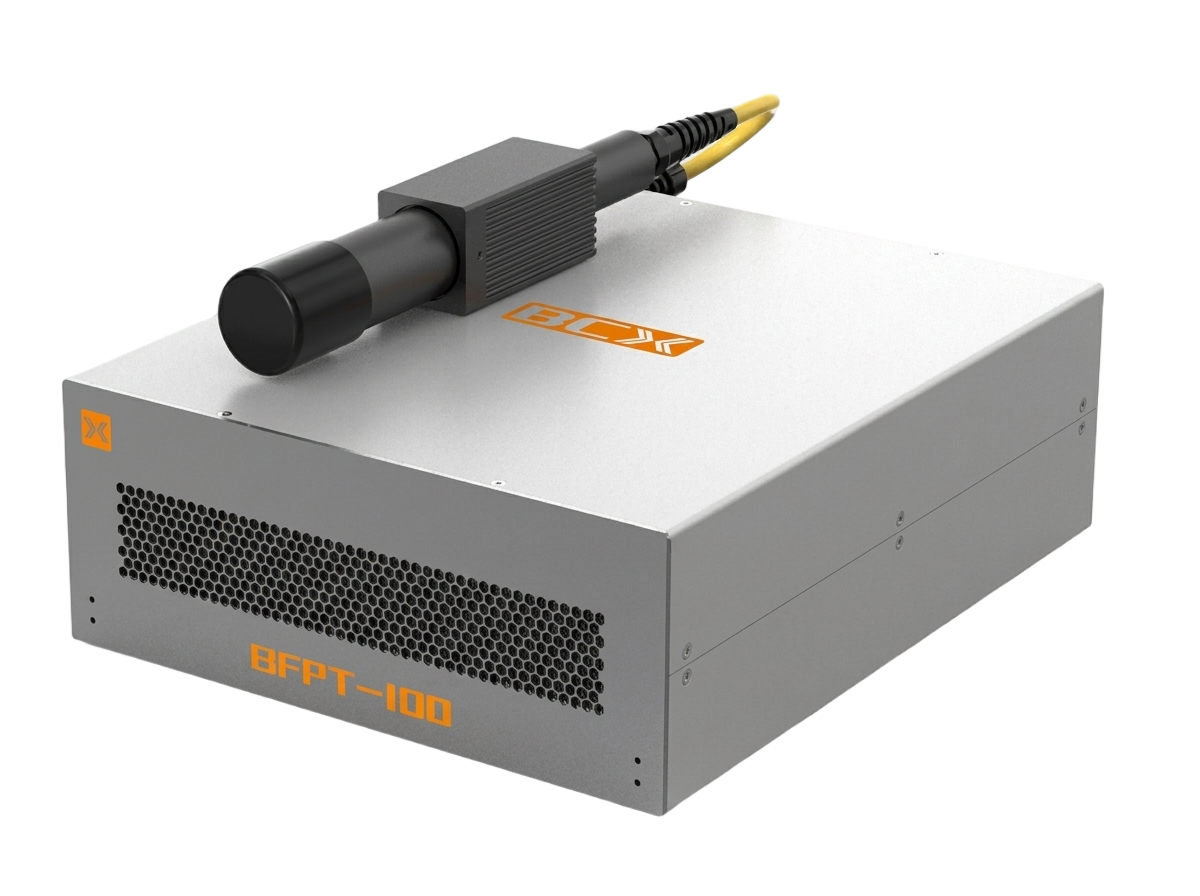

Pulse Fiber Laser (air-cooled miniaturization)
- High energy, high peak value, high M² Beam Quality: 70M maximum single Pulse Energy 1.1mJ,80M maximum single Pulse Energy 1.3mJ, 100M maximum single Pulse Energy 1.8mJ, Peak Power 10kW, m≤ 1.4
- Multi-mode, small pulse width, adjustable first pulse: 22 Pulse Duration, pulse width range 2 ~ 500ns, adjustable first pulse intensity, to meet the first point processing requirements
- Miniaturized design: air-cooled miniaturized module, the volume is reduced by 40% compared to the 1.0 version, and the weight is reduced by 46%, which is available for portable integration
Specifications
Features of products
· high Energy, High Peak, High M² Beam Quality: the maximum single Pulse Energy of 70M is 1.1mJ, the maximum single Pulse Energy of 80M is 1.3mJ, the maximum single Pulse Energy of 100M is 1.8mJ, the Peak Power is 10kW, and m≤ 1.4.
· multi-mode, small pulse width, adjustable first pulse:22 Pulse Duration, pulse width range 2 ~ 500ns, the first pulse intensity is adjustable, to meet the first point processing requirements.
· miniaturized design: the air-cooled miniaturized module reduces the volume by 40% and the weight by 46% compared with the 1.0 version, which is available for portable integration.
· stable and precise power output: good power linearity, high output power Resolution, up to 0.4%.
· rich hardware and software functions: A variety of industrial control interfaces, DB25, RS232, to meet the needs of different control methods; stronger anti-electromagnetic interference ability.
· widely used: widely used in Aluminum Oxide (Al₂O₃) black, stainless steel color, flight marking, chip marking, solar silicon dicing, Laser deep carving, Laser cleaning and other fields.

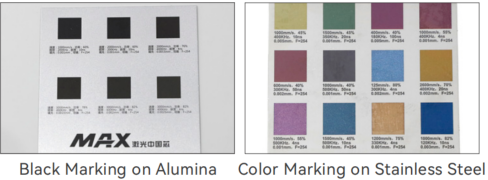

Application sample
Pulse Fiber Laser (air-cooled miniaturization)
