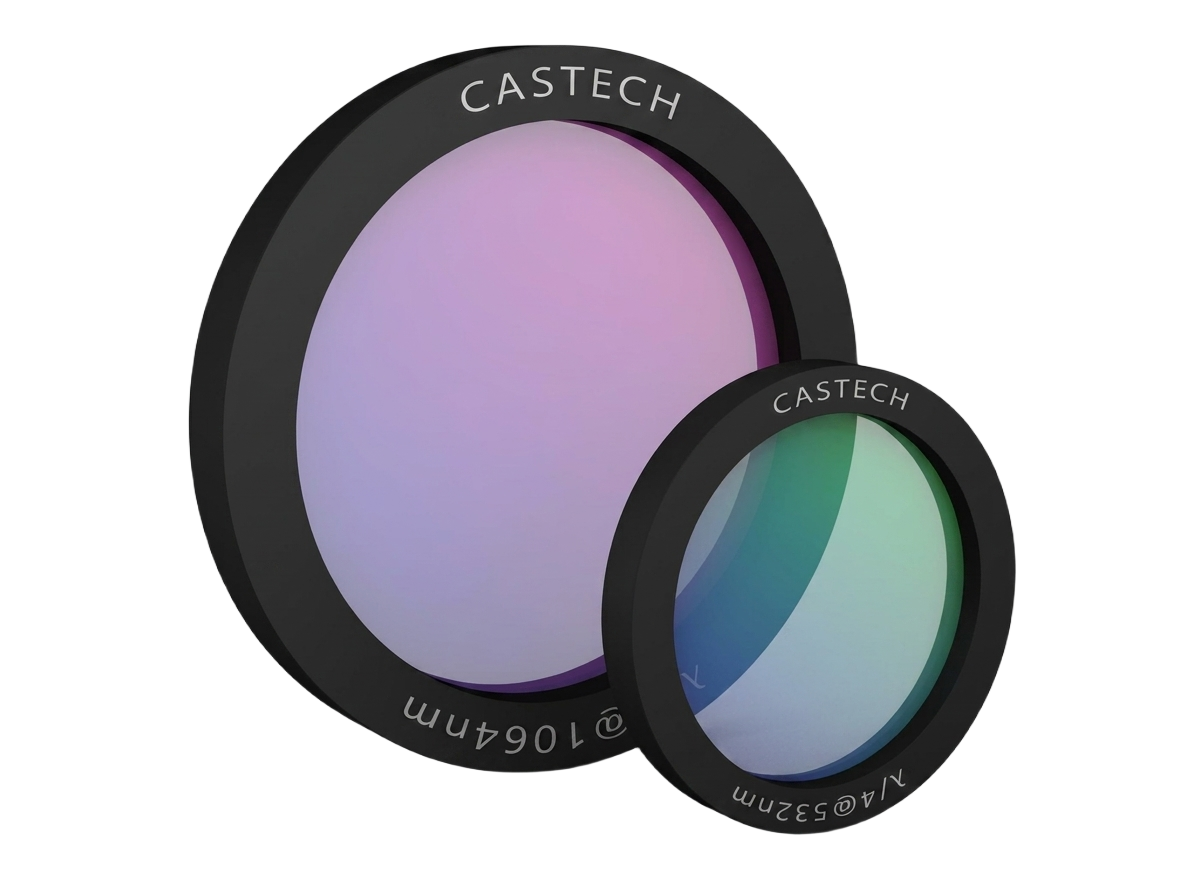

Single Wavelength Waveplate
| Product Introduction
Waveplate are widely used in rotating polarization applications such as conversion between linear polarization and Circular Polarization. We offer a wide range of 1/4 Waveplate and half-wave plates, including multi-stage Waveplate, glued zero-stage Waveplate, optical glue zero-stage Waveplate, air system zero-stage Waveplate, true zero-stage Waveplate, and dual-Wavelength Waveplate. Our Waveplate have the characteristics of high precision and high damage threshold. More importantly, we have the ability to design and process Waveplate according to customer requirements to meet customer's individual application needs.
|
· material: Quartz crystal or MgF CO₂ · customizable shapes and sizes · diameter range: 5 - 100mm · clear Aperture: 90% of the center diameter · flatness: & lambda;/10 @ 632.8nm · optional mounting of bracket |
· finish: 10/5 S/D · parallelism:< 3 & Prime; · provide standard membrane system or customized membrane system according to customer needs · high LIDT(Laser Induced Damage Threshold) · delay Precision: & lambda;/500 |
| Optical Testing capacity
We use strict aspheric measurement methods to ensure that each aspheric mirror product processed meets the design requirements. Among them, Talysurf-PGI use contact method to test Fine Grinding products; CGH combined with Zygo Interferometer, CGH can compensate the wavefront error of the Optics element to be tested, realize zero-position interferometry, and obtain high-precision surface shape information; LuphoScan2603D uses non-contact interferometry to Optics and measure the Polishing aspheric surface.
Single Wavelength Waveplate
