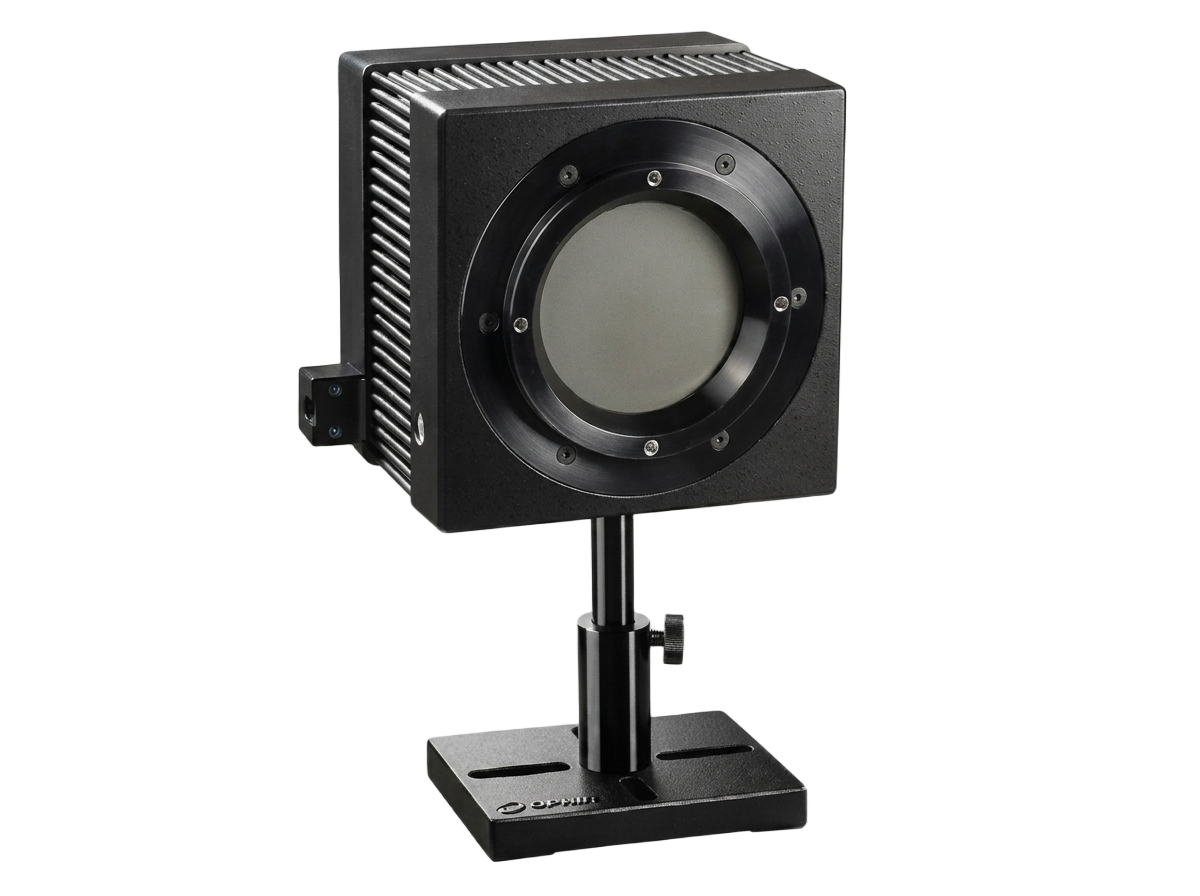

Thermopile Laser Power probe
- high sensitivity probe
- Special thermocouple structure fast response time, up to 0.8s
- Provide Optical Fiber adapter, BNC analog output and other accessories
Specifications
| Product Overview
Thermopile probes typically have a wide spectral response range, and most Absorption films have a relatively flat spectral response. OPHIR provides different power levels, different characteristics of the probe to meet the diverse needs. In addition to determining different calibers, ranges, and heat dissipation methods according to Laser characteristics. In addition, the Absorption material of the thermopile probe and the shape of the Absorption body have a great influence on its performance, through different Absorption body configuration, can achieve high Average Power damage threshold, high short pulse damage threshold. value, high-length Pulsed LIDT, fast response, broad-spectrum flat response, and so on.
| Features
|
• high sensitivity probe
• conduction refrigeration
• low noise, noise level 2 μW, low drift (2-10μW)
• broadband (0.19-20 μm) Absorption film, flat response line, suitable for CW measurement
• special thermocouple structure fast response time, up to 0.8s
• A variety of Absorption film selection for continuous, short pulse, high energy density and high energy density
|
• power range 200fW to 150W
• maximum 50W continuous measurement, 150W intermittent measurement
• energy range (10μJ to 30J)
• calibrated THz band for terahertz power energy measurement
• can be used for single-shot Pulse Energy measurement
• provide Optical Fiber adapter, BNC analog output and other accessories
|
Low Power (<150W) Thermopile Laser Power Probe
• High sensitivity probe
• Conduction refrigeration
• Low noise, noise level 2uW, low drift (2-10uW)
• Broadband (0.19-20 μm) Absorption film, response line flat, suitable for CW measurement
• Special thermocouple structure fast response time, up to 0.8s
• A variety of Absorption film selection for continuous, short pulse, high energy density and high energy density
Medium power (150~500W) thermopile Laser Power probe
• Conduction cooling
• High sensitivity: 30 mW-300 W;
• Wavelength response range: 0.15-20μm;
• Continuous measurement up to 50W, intermittent measurement up to 150W
• A variety of Absorption film selection for continuous, short pulse, high energy density and
High energy density
Kilowatt class air-cooled thermopile power probe
• High damage threshold
• Fan cooling
• High damage threshold
• Response line: 0.19-20μm
• Up to 250W continuous measurement, 500W intermittent measurement
• Fastest response time 1. 5S
• Bore diameters from 17.5mm to 35mm and 50mm, 65mm
• A variety of Absorption film suitable for short pulse, long pulse, high energy and high power density of different Laser measurement
Ten-watt Water Cooling thermopile power probe
• Water Cooling
• Large bore design
• Spectral line response range: 0.19-20μm
• High damage threshold up to 39kW/cm2
• Fastest response time 2. 5S
• High power density, long pulse continuous measurement
• Power measurement range: 50mW-1500W
• Single pulse measurement 120mJ-200J
• Ultra-thin design facilitates narrow space measurement and system integration
• Multi-Wavelength calibration
100,000 Watt Water Cooling Thermopile Power Probe
• Water Cooling
• Ultra high power design, up to 120kW
• High damage threshold
• Spectral response range: 0.19-20μm
• Power measurement range: 20W-120kW
• Wavelength calibration
kilowatt-ten thousand watt handheld thermopile power meter
• Spectral response range: 0.19-20μm
• High power probe
• Suitable for short time measurement
• High cost performance
• Integrated design of meter head and probe
• Power measurement up to 10kW
• High energy, large aperture measurements
Beam Track Power Spot Probe
• Can measure the power of the Laser, single Pulse Energy, can measure the Laser beam position
and spot size.
• Position measurement accuracy up to 0.1mm
• Dimensional measurement accuracy of +/-5%
• The measurement of the position of the Laser beam is important for Laser collimation and dimming paths,
• BeamTrack Series probes provide position feedback for easy Laser orientation.
• Vega,Nova II,StarLite header and Juno connector support
• Measurement interface for simultaneous power, position and size information
